What Is a Sight Glass? Complete Industrial Guide

A sight glass is an essential industrial component used to visually observe the flow, level, or condition of fluids inside tanks, pipelines, reactors, and pressure vessels.
It plays a critical role in process monitoring, safety assurance, and quality control across many industries such as chemical processing, pharmaceuticals, food production, and oil & gas.

What Is a Sight Glass?

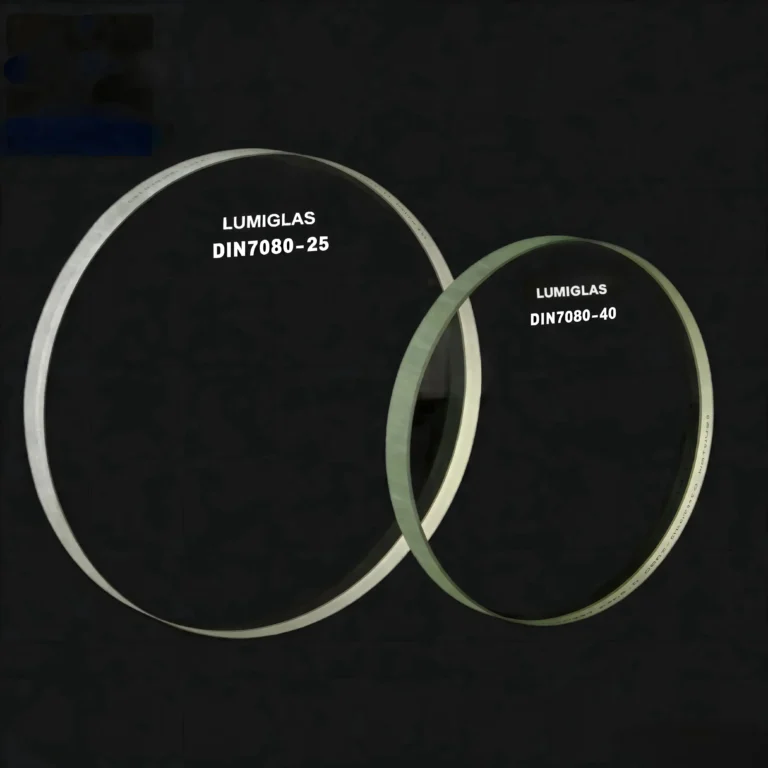

A sight glass is a transparent window made from high-performance materials such as borosilicate glass, quartz glass, sapphire, or aluminosilicate glass.
It is installed on industrial equipment to allow visual inspection of internal processes.

Depending on the application, sight glasses can be used for observing:

• Fluid flow inside pipelines
• Liquid level in tanks or vessels
• Reaction conditions in chemical reactors
• Steam, gas, or oil movement

Types of Industrial Sight Glass

There are several types of sight glasses designed for different industrial applications.

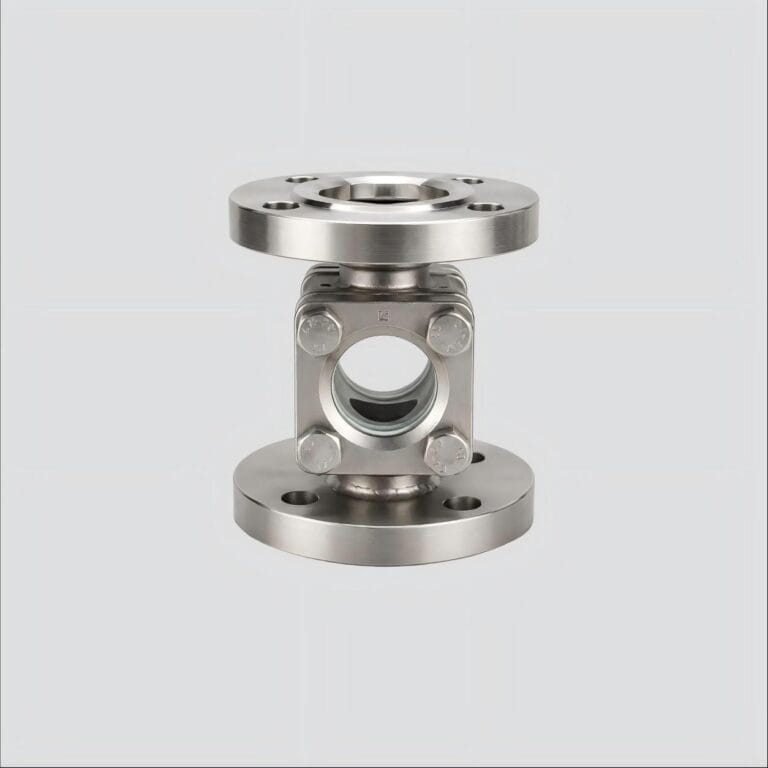

• Pipeline Sight Glass: Installed in pipelines for flow observation
• Level Gauge Glass: Used for tank liquid level monitoring

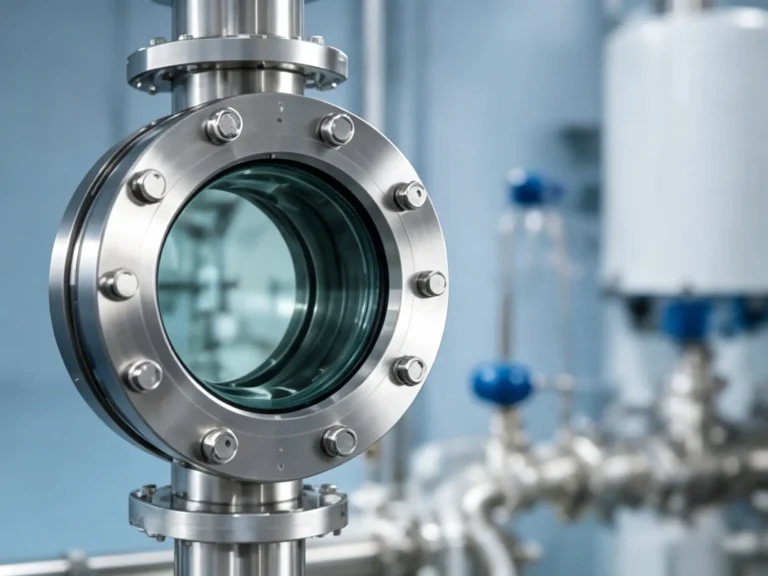

• Vessel Sight Glass: Mounted on pressure vessels or reactors
• Vacuum Window: Used in vacuum or high-pressure environments
• Sight Glass Light: Integrated lighting for low-visibility systems

Common Materials Used in Sight Glass

The performance of a sight glass depends heavily on the material used. Different materials are selected based on temperature, pressure, and chemical resistance requirements.

• Borosilicate Glass: Excellent thermal shock resistance, widely used
• Aluminosilicate Glass: Higher strength and temperature resistance
• Quartz Glass: Ideal for high temperature and UV applications
• Sapphire Glass: Extreme pressure and abrasion resistance

Industrial Applications

Sight glasses are widely used in industries where process visibility is essential.

• Chemical processing plants
• Pharmaceutical production systems
• Food and beverage manufacturing
• Oil and gas pipelines
• Water treatment systems
• Power generation facilities

How to Choose the Right Sight Glass

Selecting the right sight glass depends on multiple technical factors.

• Operating temperature range
• System pressure rating
• Chemical compatibility of media
• Required visibility level
• Installation type and standard (DIN / ANSI)

Advantages of Using Sight Glass

• Real-time process monitoring
• Improved safety and control
• Reduced maintenance downtime
• No need to open equipment
• High durability under harsh conditions

Frequently Asked Questions

What is a sight glass used for?
It is used to visually monitor fluid flow, level, or process conditions inside industrial equipment.

What materials are used?
Common materials include borosilicate, quartz, aluminosilicate, and sapphire glass.

Is sight glass safe for pressure systems?
Yes, when designed according to correct pressure and temperature standards.

What industries use sight glass?
Chemical, pharmaceutical, oil & gas, food processing, and water treatment industries.

Can sight glass be customized?
Yes, size, material, and design can be fully customized.
