DIN 28120 sight glass assembly is one of the most commonly used vessel sight glass solutions for industrial pressure vessels, reactors and storage tanks.
Designed according to German industrial standards, DIN 28120 provides reliable visual inspection of internal processes under demanding operating conditions.

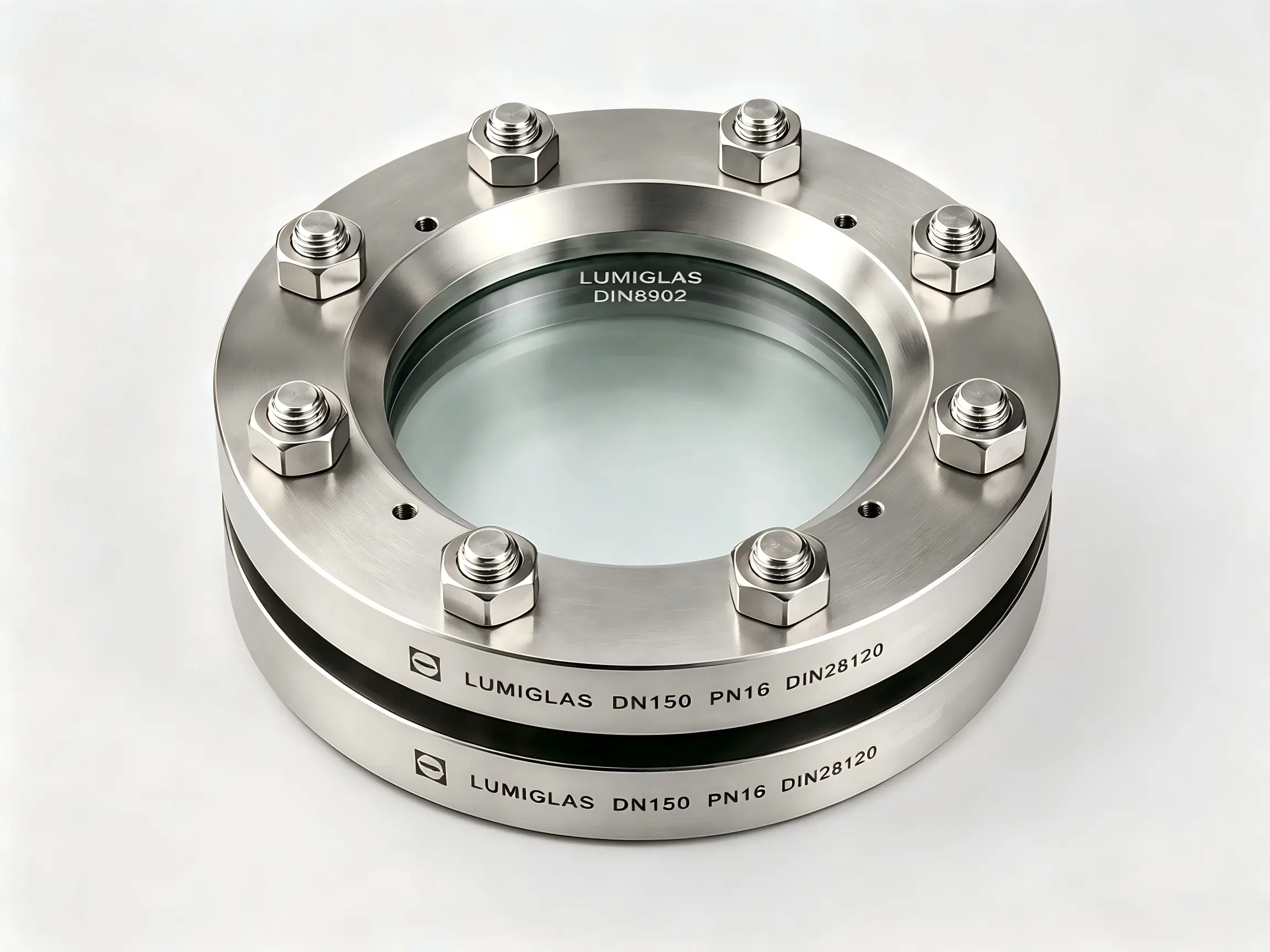

A complete DIN 28120 sight glass assembly usually consists of a stainless steel flange body, borosilicate glass window, gasket, retaining ring and fastening components.
It allows operators to safely observe liquid level, flow condition, color changes and reaction processes inside industrial equipment.
Key Features of DIN 28120 Sight Glass Assembly:
- Standard vessel sight glass design according to DIN specifications
- Stainless steel flange construction for industrial applications
- High transparency borosilicate glass window
- Suitable for pressure vessels, reactors and tanks
- Available in customized materials and sizes
What Is DIN 28120 Sight Glass Assembly?
DIN 28120 sight glass is a circular flange-mounted viewing window designed for installation on pressure vessels and process equipment.
The assembly provides a safe and convenient method for operators to visually inspect the internal condition of tanks and reactors.
Unlike a simple glass disc, a DIN 28120 sight glass assembly is a complete mechanical system.
The metal body protects the glass window and provides reliable sealing under pressure and temperature conditions.
Main Components of DIN 28120 Sight Glass Assembly
A standard DIN 28120 sight glass assembly contains several important components that work together to ensure safe operation.
| Component | Function |
|---|---|
| Stainless Steel Flange Body | Provides mechanical support and connection with the vessel |
| Borosilicate Glass Window | Allows visual observation of internal processes |
| Gasket / Seal | Prevents leakage and ensures sealing performance |
| Retaining Ring | Fixes and protects the glass window |
| Bolts and Fasteners | Provides proper clamping force for assembly |
Materials Used for DIN 28120 Sight Glass Assembly
Material selection is critical because DIN 28120 sight glasses are often used in chemical, pharmaceutical and high temperature industrial environments.
| Part | Common Material |
|---|---|
| Flange Body | SS304 / SS316L Stainless Steel |
| Glass Window | Borosilicate Glass 3.3 |
| Gasket | PTFE / Graphite / Customized sealing materials |
| Special Glass Option | Quartz Glass / Sapphire Glass for special applications |
DIN 28120 Sight Glass Dimensions and Specifications
DIN 28120 sight glass assemblies are available in different sizes to meet the requirements of various pressure vessels and industrial equipment.
The correct size selection depends on vessel design, viewing requirements, operating pressure and installation conditions.
| Nominal Size | Glass Diameter | Typical Application |
|---|---|---|
| DN50 | Small viewing window | Small tanks and laboratory equipment |
| DN80 | Medium size sight glass | Industrial vessels and process equipment |
| DN100 | Large viewing area | Chemical reactors and pressure vessels |
| DN125 / DN150 | Large diameter glass window | Large storage tanks and industrial systems |
Pressure and Temperature Considerations for DIN 28120 Sight Glass
When selecting a DIN 28120 sight glass assembly, working pressure and temperature are two of the most important factors.
The glass material, flange design and sealing system must be suitable for the actual operating environment.
Important Selection Parameters:
- Working Pressure:
The assembly must withstand the maximum operating pressure of the vessel. - Operating Temperature:
Borosilicate glass is commonly selected because of its excellent thermal shock resistance. - Medium Compatibility:
Glass and sealing materials should be compatible with the process medium. - Mechanical Load:
The flange structure must provide sufficient strength and proper glass clamping force.
Applications of DIN 28120 Sight Glass Assembly
DIN 28120 sight glass assemblies are widely used in industries where operators need direct visual access to internal processes.
- Chemical Industry:
Used on reactors and process vessels to monitor chemical reactions and liquid conditions. - Pharmaceutical Industry:
Used for hygienic process equipment requiring reliable observation. - Food and Beverage Industry:
Installed on stainless steel tanks for monitoring production processes. - Petrochemical Industry:
Suitable for vessels and equipment operating under demanding conditions. - Water Treatment Systems:
Used for observing liquid flow and internal tank conditions.
DIN 28120 vs DIN 7080 Sight Glass
Although DIN 28120 and DIN 7080 are both related to industrial sight glass applications, they serve different purposes.
DIN 7080 mainly defines the glass disc, while DIN 28120 refers to the complete sight glass assembly installed on vessels.
| Comparison | DIN 28120 | DIN 7080 |
|---|---|---|
| Product Type | Complete sight glass assembly | Glass disc only |
| Main Component | Flange body + glass + gasket + hardware | Borosilicate glass window |
| Application | Pressure vessels, reactors and tanks | Replacement glass window |
| Material | SS304 / SS316L + Borosilicate Glass | Borosilicate Glass 3.3 |
| Customization | Assembly design can be customized | Glass size and thickness customization |
Why Stainless Steel Is Commonly Used for DIN 28120 Body?
The flange body of DIN 28120 sight glass assemblies is usually manufactured from stainless steel because it provides excellent corrosion resistance, mechanical strength and durability.
| Material | Features |
|---|---|
| SS304 | Good corrosion resistance and economical solution for general applications |
| SS316L | Higher corrosion resistance for chemical and pharmaceutical applications |
How to Select the Right DIN 28120 Sight Glass Assembly?
Choosing the correct DIN 28120 sight glass assembly requires careful consideration of equipment conditions and operating requirements.
Providing accurate technical information helps ensure the best performance and service life.
Customers should confirm the following information:
- Nominal Size:
Confirm the required flange size and viewing diameter. - Material Requirement:
Select suitable stainless steel material such as SS304 or SS316L according to the application environment. - Working Pressure:
Provide the maximum operating pressure of the vessel. - Operating Temperature:
Confirm normal working temperature and possible temperature fluctuations. - Process Medium:
Provide information about liquid, gas or chemical characteristics. - Connection Standard:
Confirm flange standard and installation requirements.
Common Problems of DIN 28120 Sight Glass and Prevention
Although DIN 28120 sight glass assemblies are designed for industrial environments, improper selection or installation may affect performance.
| Problem | Possible Cause | Solution |
|---|---|---|
| Glass Breakage | Thermal shock, excessive pressure or improper installation | Select suitable glass material and install with correct clamping force |
| Leakage Around Flange | Damaged gasket or insufficient sealing | Replace gasket and check installation torque |
| Glass Surface Corrosion | Chemical incompatibility | Select suitable glass material according to medium |
| Poor Visibility | Dirty glass surface or unsuitable installation position | Improve cleaning method or installation design |
Why Choose Lumistar DIN 28120 Sight Glass Assembly?
Lumistar specializes in manufacturing industrial sight glass solutions, including DIN 28120 vessel sight glass assemblies, pipeline sight glasses, vacuum viewports and customized glass components.
With professional production experience and strict quality control, Lumistar provides reliable products for customers worldwide in chemical, pharmaceutical, food processing and industrial equipment industries.
Lumistar DIN 28120 Sight Glass Advantages:
- Complete sight glass assembly manufacturing capability
- SS304 and SS316L stainless steel options
- High quality borosilicate glass windows
- Customized design according to drawings and specifications
- Strict inspection before delivery
- Support OEM and international industrial projects
Frequently Asked Questions About DIN 28120 Sight Glass
Q1: What is DIN 28120 sight glass used for?
DIN 28120 sight glass is used for visual inspection of internal conditions in pressure vessels, reactors, tanks and industrial process equipment.
Q2: What material is normally used for DIN 28120 sight glass?
The body is commonly manufactured from SS304 or SS316L stainless steel, while the viewing window is usually made from borosilicate glass 3.3.
Q3: Can DIN 28120 sight glass be customized?
Yes. Lumistar can customize flange size, material, glass type, gasket material and design according to customer requirements.
Q4: What is the difference between DIN 28120 and DIN 7080?
DIN 28120 refers to the complete sight glass assembly, while DIN 7080 mainly defines the borosilicate glass disc used in sight glass applications.
Q5: How can I get a quotation for DIN 28120 sight glass?
Please provide size, material, pressure, temperature, medium information and quantity. Lumistar can provide a suitable solution and quotation.
