PFA Lined Tubular Pipeline Sight Glass for Corrosive Applications

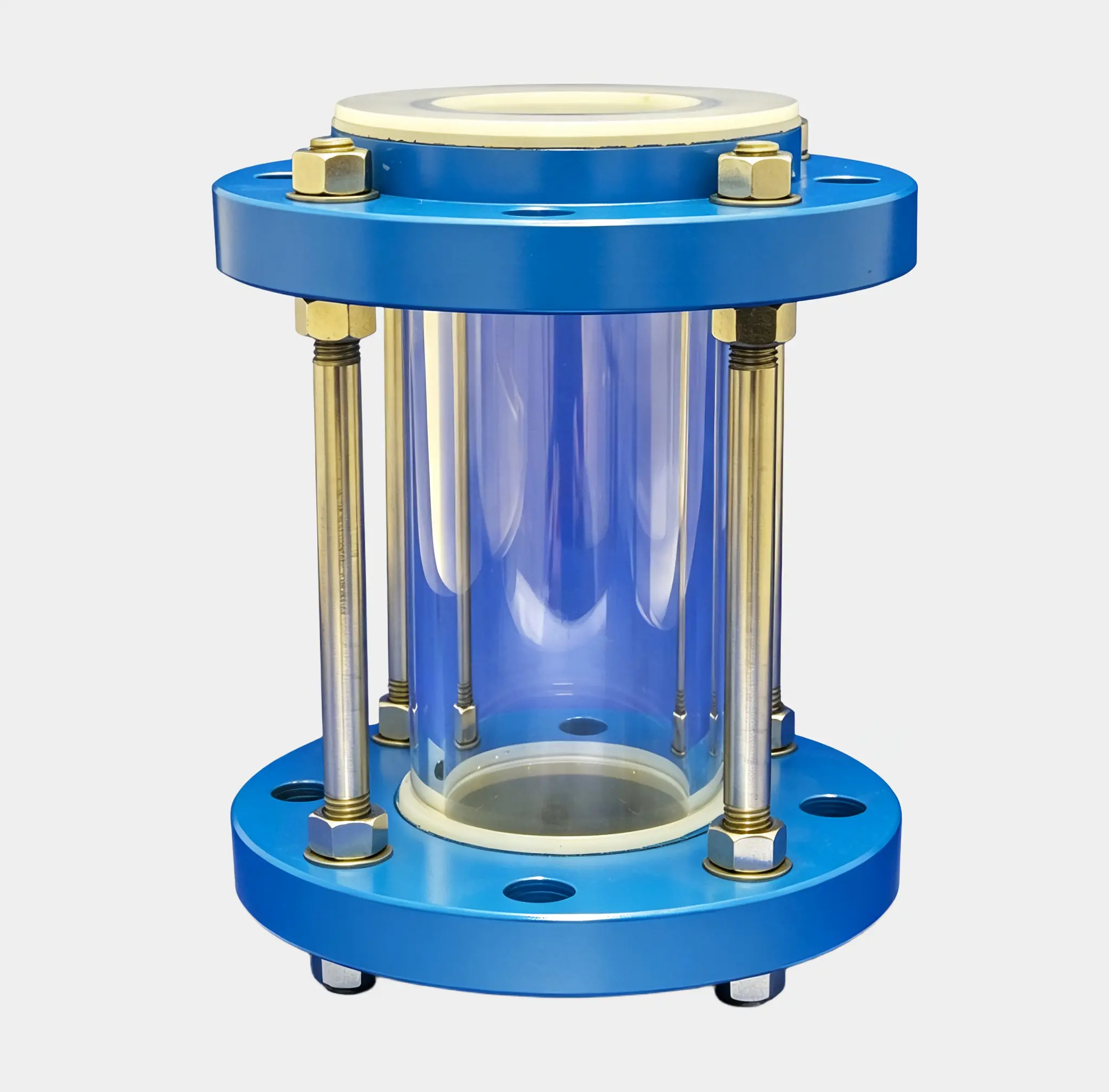

Lumistar PFA lined tubular pipeline sight glass is designed for corrosive chemical applications, providing 360° full-flow visibility with a heavy wall borosilicate glass tube and PFA/PTFE lined construction.
Non binding • Usually a response within 24 hours
Certified quality
Technical data

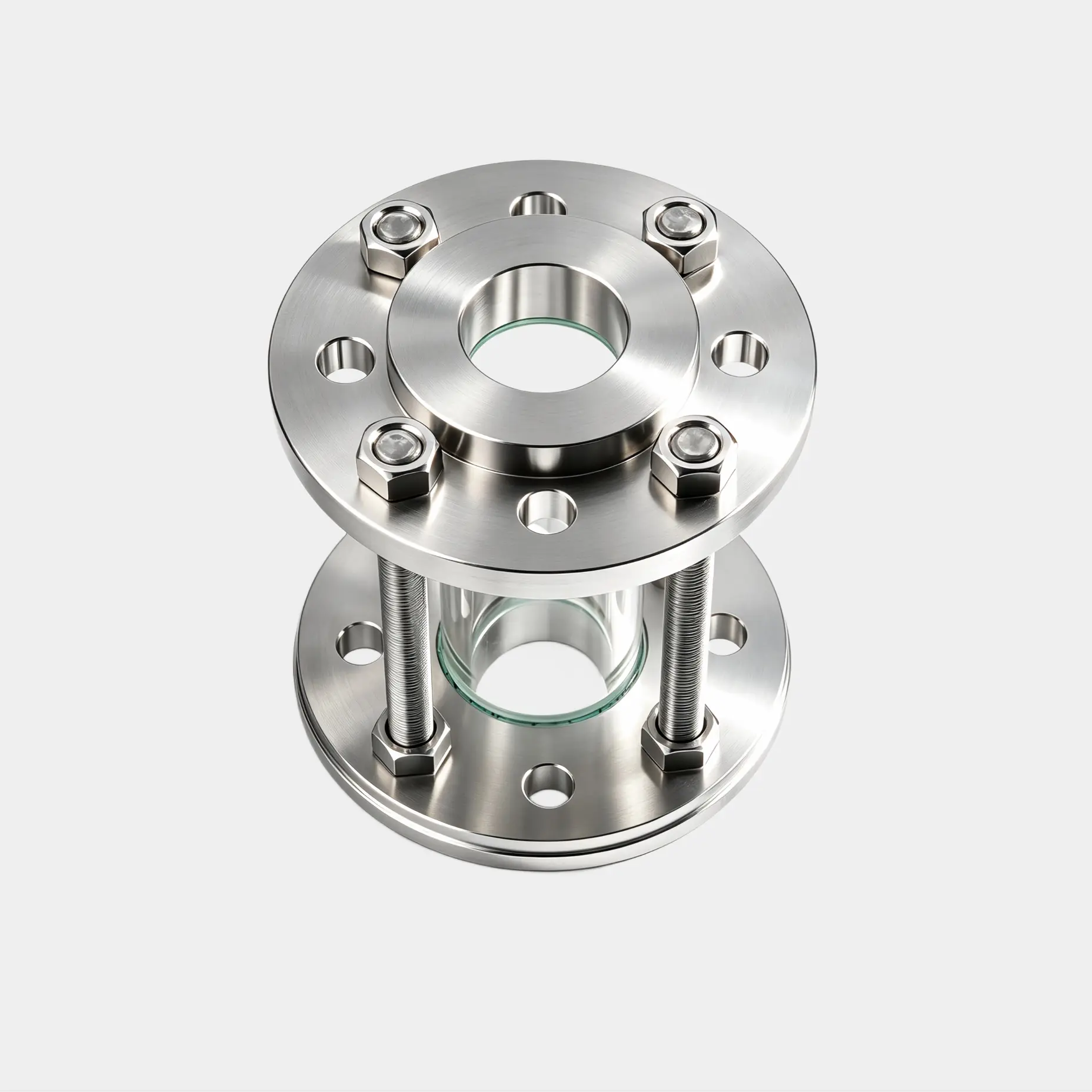

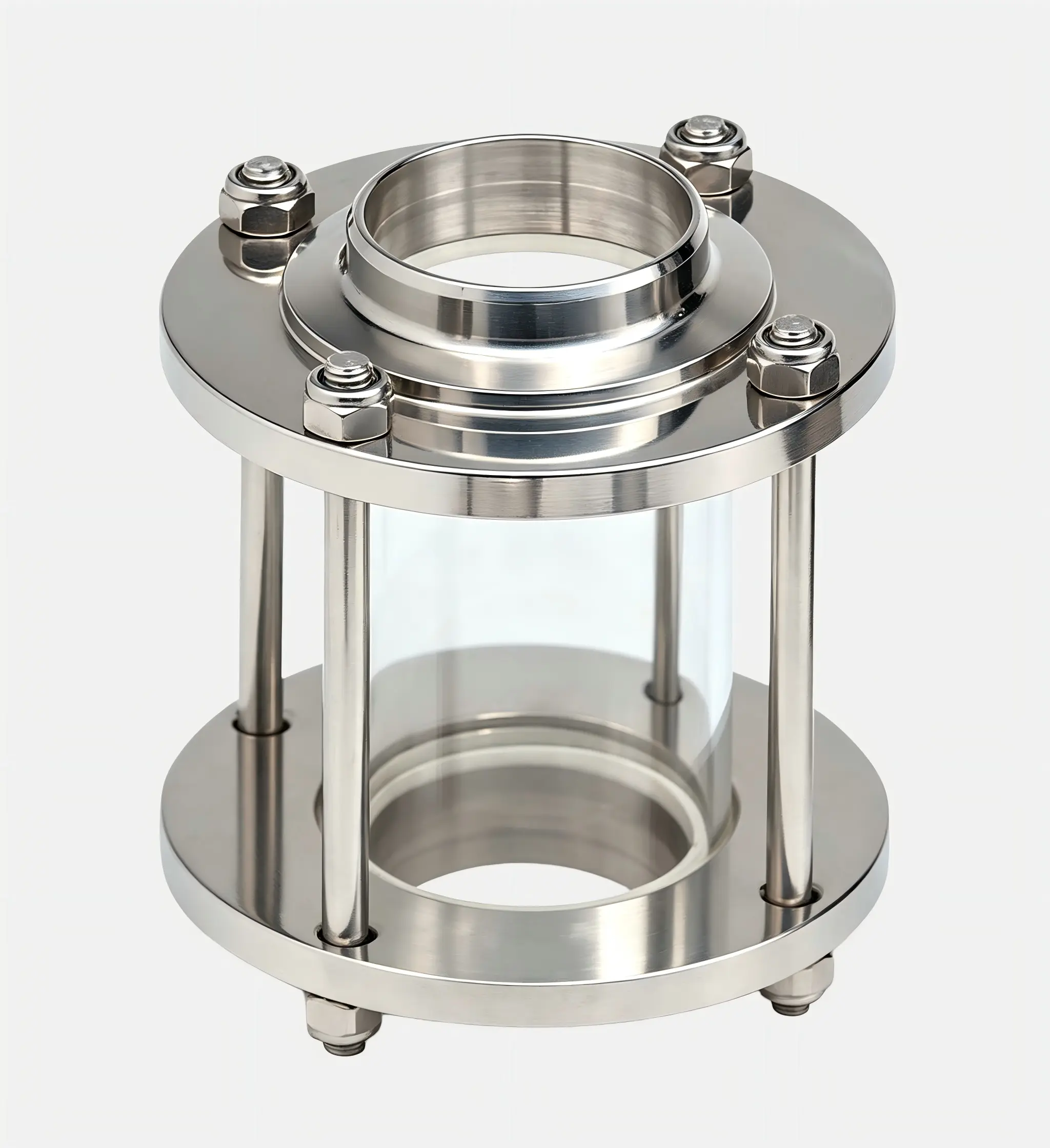

PFA Lined Tubular Pipeline Sight Glass
Lumistar PFA lined tubular pipeline sight glass is specially designed for visual monitoring of fluid flow in highly corrosive and demanding industrial processes.
It combines a heavy-wall borosilicate glass tube with PFA/PTFE lined flanges to provide excellent chemical resistance and reliable long-term operation.
The tubular design provides a 360° viewing area, allowing operators to clearly observe the condition, color, flow direction, and contamination of process media without interrupting production.

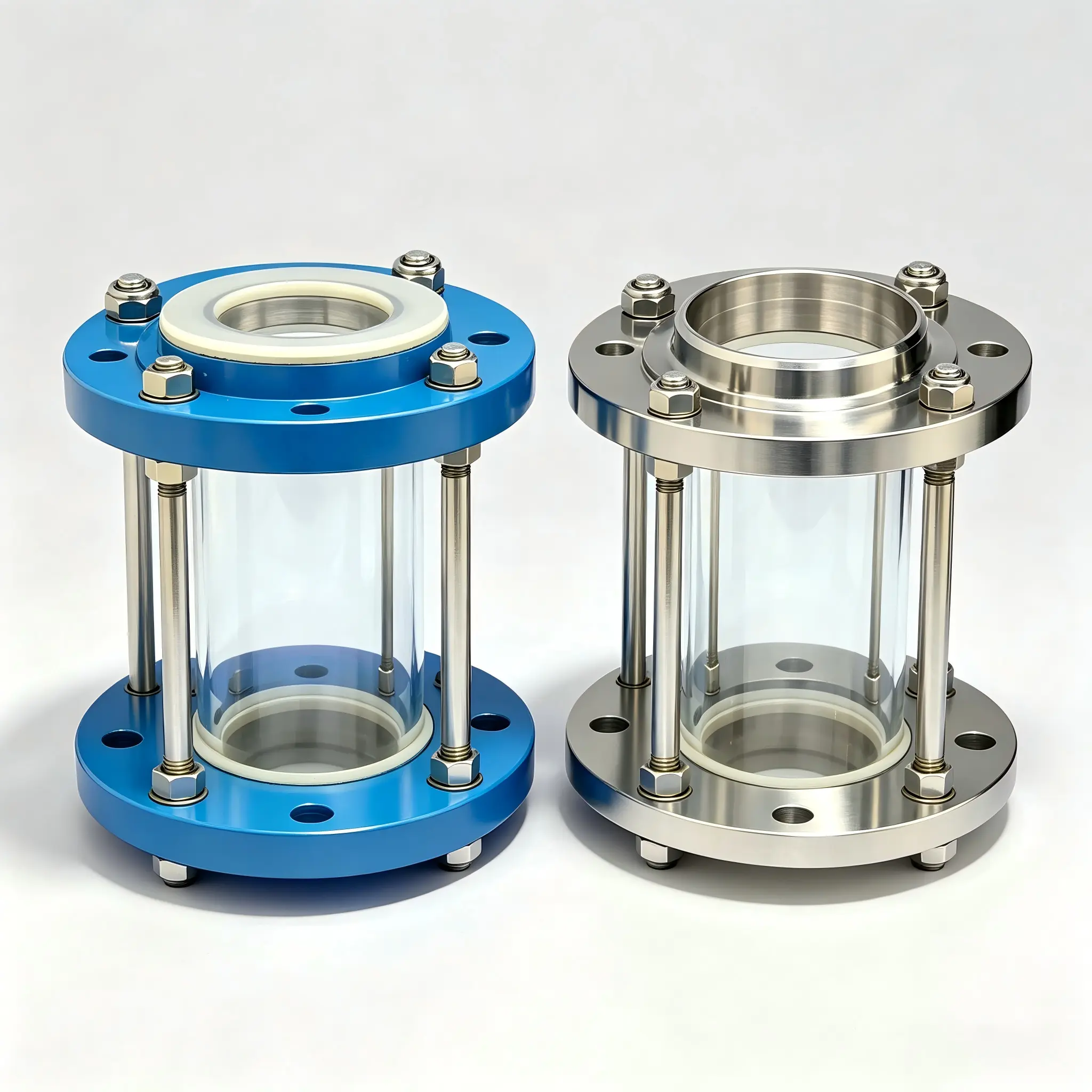

The robust protective cage structure improves mechanical strength and protects the glass tube from external impact during operation.
The adjustable tie rod design also allows easier installation and maintenance while keeping the sight glass securely installed on the pipeline.
With excellent resistance to acids, alkalis, solvents, and other aggressive chemicals, this PFA lined pipeline sight glass is widely used in chemical processing, pharmaceutical, semiconductor, and other corrosion-sensitive applications.
Technical Data
| Parameter | Specification |
|---|---|
| Product Type | Tubular Pipeline Sight Glass |
| Lining Material | PFA / PTFE |
| Glass Material | Borosilicate Glass 3.3 |
| Viewing Angle | 360° Full Viewing |
| Temperature Range | -29℃ to 150℃ |
| Pressure Rating | Up to 10 bar(g) |
| Vacuum Rating | Full Vacuum |
| Installation Direction | Horizontal or Vertical |
| Connection Type | Flanged |
| Flange Material | Stainless Steel 304 / 316 |
| Application | Corrosive Chemical Process |
Pressure Rating Table
| Size | Pressure Rating |
|---|---|
| DN25-DN100 (1″-4″) | 10 bar |
| DN150 (6″) | 6 bar |
| DN200 (8″) | 5 bar |
| DN250-DN300 (10″-12″) | 3 bar |

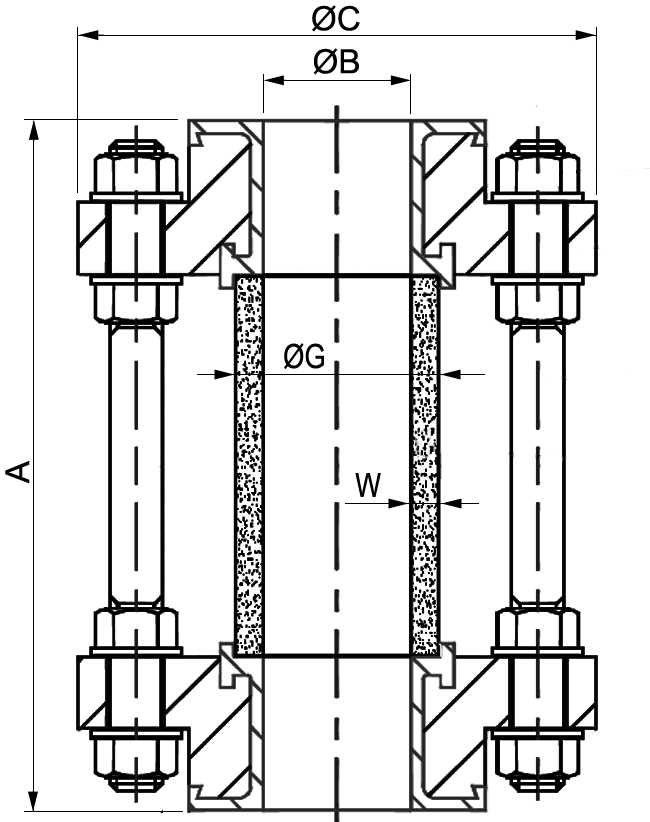

PFA Lined Tubular Pipeline Sight Glass—Drawing
Dimensions (ASME 150)
| Size | Face to Face A | Flange OD B | Glass Diameter |
|---|---|---|---|
| DN25 | 152 mm | 110 mm | 30 mm |
| DN40 | 178 mm | 125 mm | 50 mm |
| DN50 | 203 mm | 150 mm | 60 mm |
| DN80 | 241 mm | 190 mm | 90 mm |
| DN100 | 292 mm | 230 mm | 120 mm |
| DN150 | 356 mm | 280 mm | 170 mm |
| DN200 | 300 mm | 345 mm | 215 mm |
| DN250 | 300 mm | 405 mm | 300 mm |
| DN300 | 300 mm | 485 mm | 325 mm |
KEY FEATURES
360° Viewing
Full visibility of process media flow
Corrosion Resistance
PFA/PTFE lining protects against aggressive chemicals
Heavy Wall Glass Tube
High strength borosilicate glass 3.3 tube
Easy Maintenance
Adjustable tie rods allow convenient installation
Wide Temperature Range
Suitable for -29°C to 150°C applications
Vacuum Service
Available for full vacuum operation
Custom Manufacturing Service
We provide tailor-made solutions according to drawings or technical requirements.
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
TYPICAL APPLICATIONS
- Pressure Vessels
- Chemical Reactors
- Boilers & Steam Systems
- Pipeline Sight Glass Assemblies
- Pharmaceutical Equipment
- Food & Beverage Processing
- Industrial Observation Ports
FAQ
A:A PFA lined sight glass is a corrosion resistant pipeline viewing device with a fluoropolymer lining that protects internal components from aggressive chemicals.
A:The standard operating temperature range is -29°C to 150°C.
A: Yes. The PFA/PTFE lining provides excellent resistance against acids, alkalis, solvents, and other corrosive media.
A: The viewing window uses heavy wall borosilicate glass 3.3 for excellent transparency and mechanical strength.
A: Yes. Anti-reflective, conductive, and other special coatings can be provided upon request.
Need Custom PFA Lined Tubular Pipeline Sight Glass for Corrosive Applications Solutuions?
Send us your drawings or technical requirements for fast quotation and engineering support.
