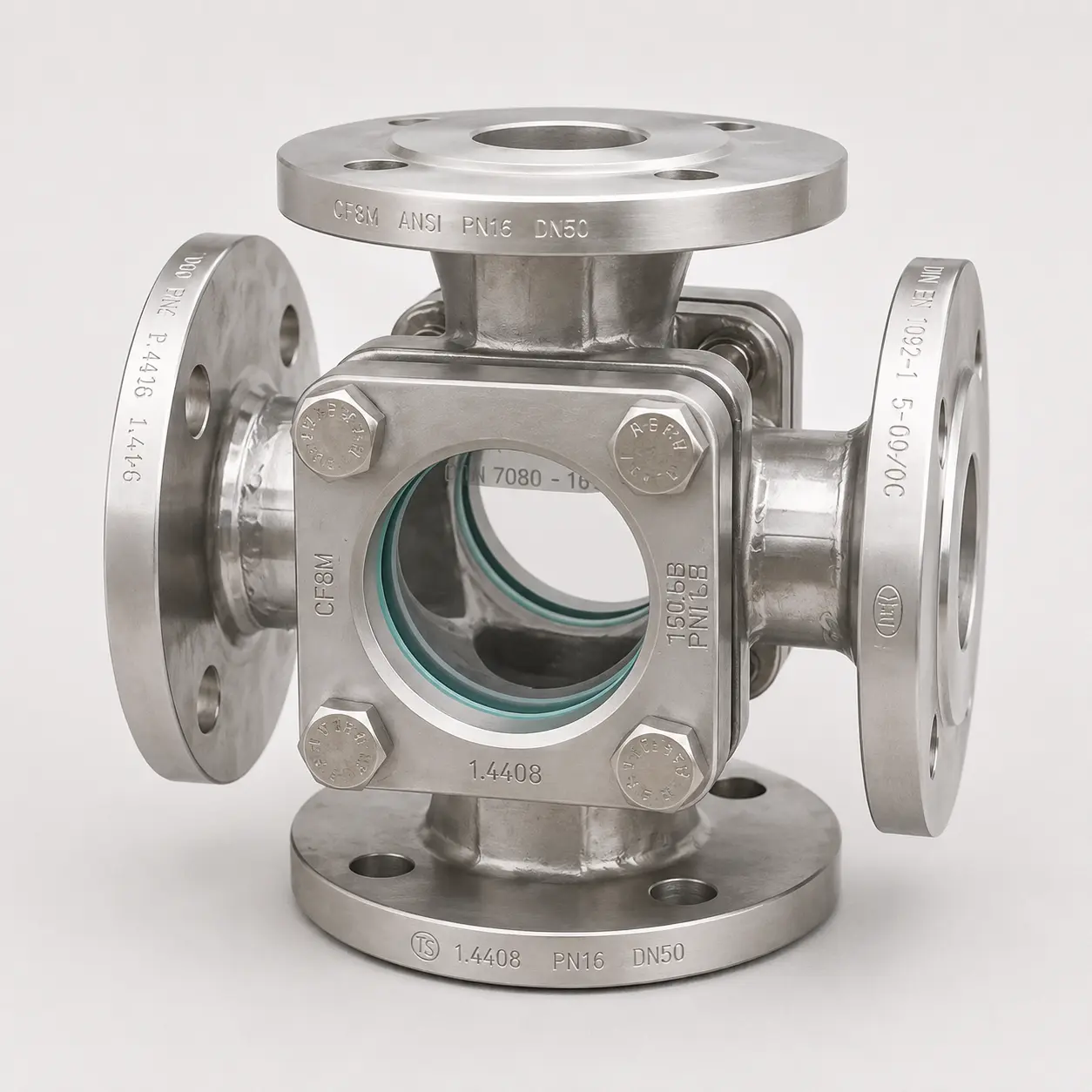

ANSI Four-Way sight glass
The ANSI Four-Way Sight Glass is a multi-directional flow observation device designed for pipeline intersections, mixing systems, and process distribution lines. Featuring a four-port cross-body design with transparent viewing windows, it enables operators to monitor flow conditions from multiple directions while maintaining process integrity.
Non binding • Usually a response within 24 hours
Certified quality
Technical data
ANSI Four-Way Sight Glass for Multi-Directional Process Monitoring
The ANSI Four-Way Sight Glass is specifically engineered for process systems where multiple pipeline connections converge. Its cross-shaped body design allows operators to visually inspect fluid movement, mixing performance, flow distribution, phase separation, and product conditions from several directions simultaneously.
Unlike conventional inline sight glasses, the four-way configuration serves both as a process junction and an observation point, reducing installation space while improving visibility within complex piping systems.
The sight glass body is manufactured from stainless steel and fitted with high-strength borosilicate glass windows conforming to industrial sight glass standards. Borosilicate glass provides excellent resistance to thermal shock, chemicals, and elevated temperatures.
ANSI Four-Way Sight Glasses are commonly used in chemical processing plants, pharmaceutical production systems, food and beverage facilities, water treatment equipment, and petrochemical installations where flow observation and process verification are essential.
ANSI Four-Way Sight Glass— Technical Data
| Item | Description |
|---|---|
| Flange Standard | The flange connection complies with DIN-PN16; PN25; PN40; |
| Use | For visual inspection of filling and flow in pipelines. Lumistar optical lenses enable reliable monitoring of the function and performance of individual devices as well as whole plants |
| Operating conditions | Operating pressure : 16 to 40 bar Operating temperature : 150°or 280°C |
| Installation position | any |
| Special design options | – with ANSI flanges – with other lengths – with different nominal connection widths – with weld ends – with heating jacket – with sight glass lamps – with safety seal – according to Lumistar design 885 |
| Materials | All weldable materials Housing : Steel or stainless steel according to customer requirements Glass plates: Borosilicate glass DIN 7080, Sodium lime glass DIN 8902 Seals : Graphite (or as desired) |
| Order example | Three-way sight glass design 972 wN1.4571 with borosilicate glass DIN 7080 DN 50 PN 16 |
ANSI Four-Way Sight Glass— Technical Advantages
| Feature | Benefit |
|---|---|
| Four-Way Configuration | Observation of multiple flow paths |
| ANSI Flanged Design | Easy integration into existing systems |
| Borosilicate Windows | High temperature and chemical resistance |
| Stainless Steel Body | Long-term corrosion protection |
| Compact Construction | Saves installation space |
| Optional Lighting | Enhanced visibility |
| Pressure Rated Design | Industrial process compatibility |
| Custom Sizes Available | Flexible engineering solutions |

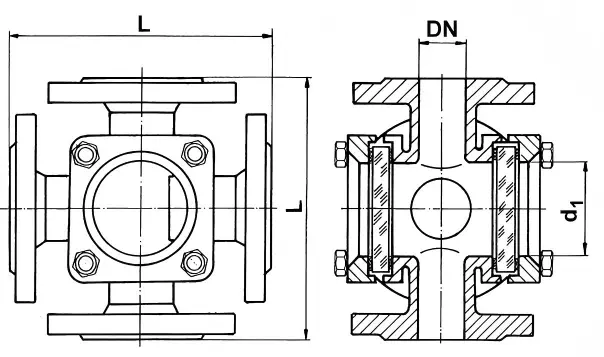

ANSI Four-Way Sight Glass— Drawing
| DN | L | d₁ | d₂ |
|---|---|---|---|
| 15 | 130 | 32 | 45 |
| 20 | 150 | 32 | 45 |
| 25 | 160 | 48 | 63 |
| 32 | 180 | 48 | 63 |
| 40 | 200 | 65 | 80 |
| 50 | 230 | 80 | 100 |
| 65 | 290 | 80 | 100 |
| 80 | 310 | 100 | 125 |
| 100 | 350 | 125 | 150 |
| DN125–DN200 available upon request. | |||
KEY FEATURES
Multi-Directional Visibility
Provides observation from multiple process directions.
High Optical Clarity
Clear viewing windows allow accurate monitoring of media conditions.
Corrosion Resistance
Suitable for aggressive chemicals and industrial fluids.
Reliable Sealing Performance
Precision sealing design ensures leak-free operation.
Pressure Resistance
Available for industrial pressure systems and process pipelines.
Long Service Life
Durable construction minimizes maintenance requirements.
Custom Manufacturing Service
We provide tailor-made solutions according to drawings or technical requirements.
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
TYPICAL APPLICATIONS
- Pressure Vessels
- Chemical Reactors
- Boilers & Steam Systems
- Pipeline Sight Glass Assemblies
- Pharmaceutical Equipment
- Food & Beverage Processing
- Industrial Observation Ports
FAQ
A: A cross-type sight glass with four pipeline connections that allows visual observation of fluid movement through multiple directions.
A:A four-way sight glass enables observation of mixing, splitting, and distribution processes occurring at pipeline intersections.
A: Yes. ANSI Four-Way Sight Glasses can be designed for various pressure classes depending on process requirements.
A: Yes. LED and explosion-proof lighting systems can be integrated into the sight glass assembly.
A: Yes, optional accessories include LED lights, cleaning wipers, and explosion-proof illumination systems.
Need Custom ANSI Four-Way sight glass Solutuions?
Send us your drawings or technical requirements for fast quotation and engineering support.
