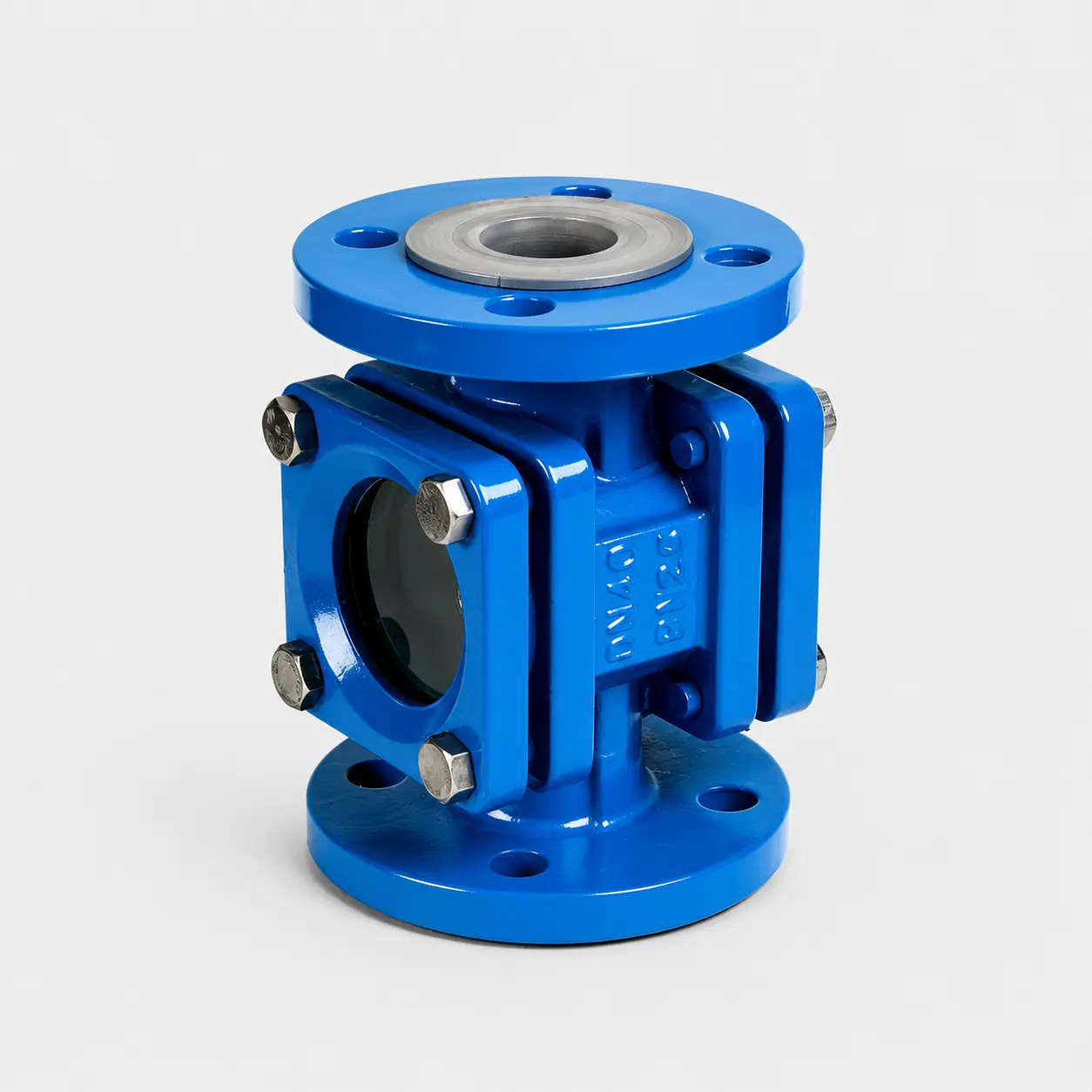

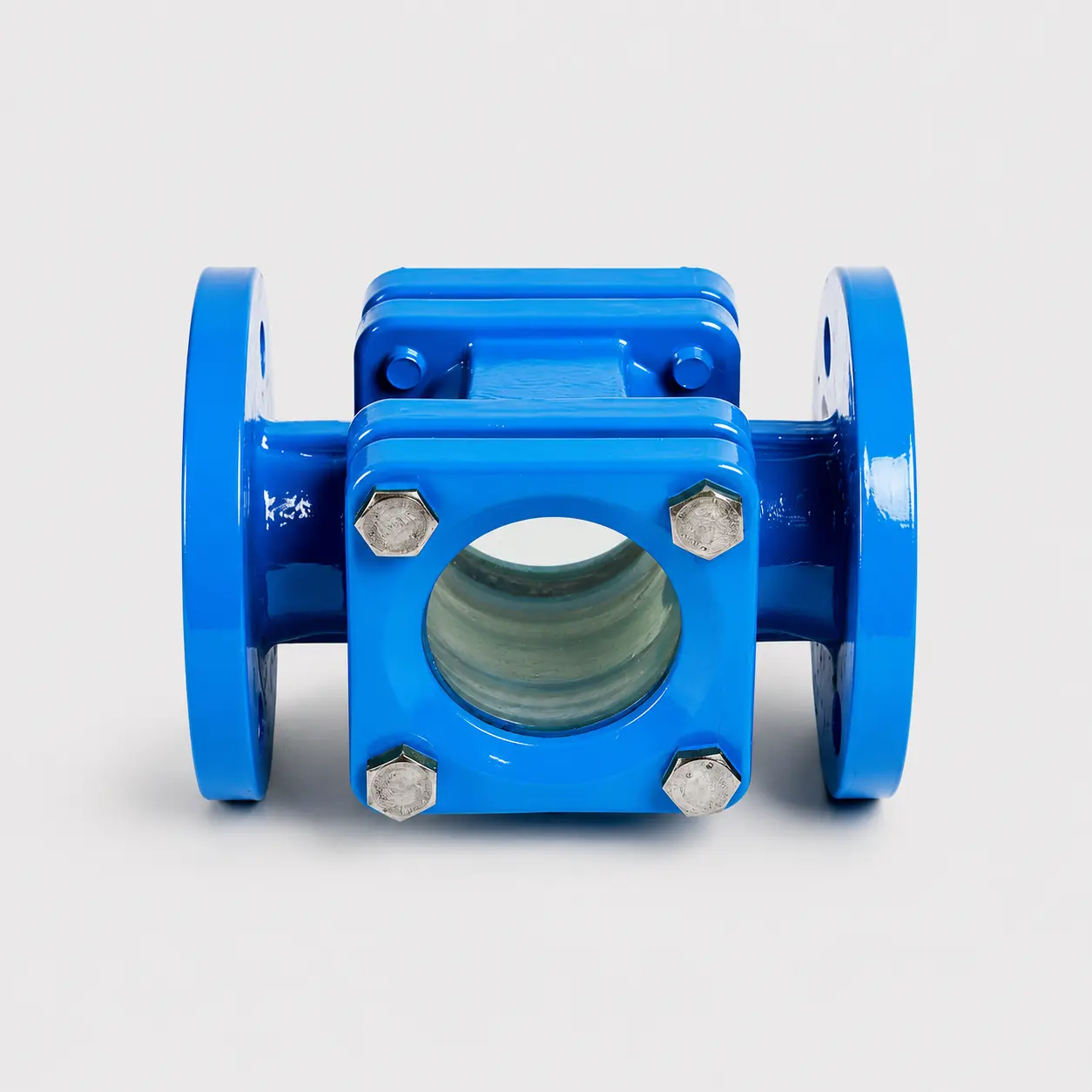

Fluoropolymer-Lined Sight Glass
The Fluoropolymer-Lined Sight Glass is designed for highly corrosive process media where conventional stainless steel sight glasses are unsuitable. Featuring PTFE or PFA lining, it provides outstanding chemical resistance while allowing safe visual inspection of flow conditions in demanding industrial applications.
Non binding • Usually a response within 24 hours
Certified quality
Technical data
Fluoropolymer-Lined Sight Glass | PTFE & PFA Lined Corrosion-Resistant Sight Glass
The Fluoropolymer-Lined Sight Glass is specifically engineered for chemical processing systems handling aggressive acids, alkalis, solvents, and other highly corrosive fluids. The internal wetted surfaces are lined with high-performance fluoropolymers such as PTFE or PFA, providing outstanding resistance to chemical attack while maintaining the mechanical strength of a stainless steel housing.
Combined with high-quality borosilicate, fused quartz, or sapphire viewing glass, the sight glass delivers reliable visual monitoring of process media under demanding operating conditions. It is widely used in chemical plants, pharmaceutical production, semiconductor manufacturing, water treatment, and other corrosion-sensitive industries.
Fluoropolymer-Lined Sight Glass— Technical Data
| Specification | Details |
|---|---|
| Product Name | Fluoropolymer-Lined Sight Glass |
| Body Material | Carbon Steel / SS304 / SS316 / SS316L |
| Lining Material | PTFE, PFA (Optional FEP upon request) |
| Viewing Window | Borosilicate Glass, Fused Quartz, Sapphire |
| Nominal Size | DN15–DN300 |
| Connection Type | Flanged |
| Flange Standard | DIN, ANSI, JIS, GB or Customized |
| Pressure Rating | PN10–PN40 (Higher ratings available upon request) |
| Operating Temperature | -20°C to 200°C (Depending on lining material) |
| Sealing Material | PTFE, Graphite, Viton, EPDM |
| Installation | Horizontal or Vertical Pipeline |
Fluoropolymer-Lined Sight Glass— Component Materials
| Component | Standard Material |
|---|---|
| Body | Carbon Steel |
| Flange | Carbon Steel |
| Lining | PTFE,PFA |
| Glas plate | Borosilicate to DIN 7080 |
| Gasket | PTFE, Graphite, Viton, EPDM |
| Bolts | A2-70 |
Fluoropolymer-Lined Sight Glass — Dimensions
| ANSI | D | BL (DIN F1) | d1 | Glasplatte | ||||
|---|---|---|---|---|---|---|---|---|
| 150 lbs | 300 lbs | d2 | s (16 bar) | s (40 bar) | ||||
| 1/2″ | 89 | 95,2 | 130 | 32 | 45 | 10 | 10 | |
| 3/4″ | 98 | 117,3 | 150 | 32 | 45 | 10 | 10 | |
| 1″ | 108 | 123,8 | 160 | 48 | 63 | 10 | 15 | |
| 1 1/4″ | 118 | 133,4 | 180 | 48 | 63 | 10 | 15 | |
| 1 1/2″ | 127 | 155,6 | 200 | 65 | 80 | 12 | 20 | |
| 2″ | 152 | 165,1 | 230 | 80 | 100 | 15 | 25 | |
| 2 1/2″ | 178 | 190,5 | 290 | 80 | 100 | 15 | 25 | |
| 3″ | 191 | 209,9 | 310 | 100 | 125 | 20 | 30 | |
| 4″ | 228* | 254,0 | 350 | 125 | 150 | 25 | 32 | |
| 5″ | 254* | 279,4 | 400 | 150 | 175 | 25 | a. A. | |
| 6″ | 279 | 317,5 | 480 | 175 | 200 | 30** | a. A. | |
| 8″ | 343* | 381,0 | 600 | 175 | 200 | 30** | a. A. | |
| 10″ | See Lumistar Model 112-A | |||||||
