Mica Sealing Kit for Level Gauge
The Mica Sealing Kit for Level Gauge Glass is designed to protect gauge glass assemblies operating in high-temperature steam, alkaline solutions, and demanding industrial environments.

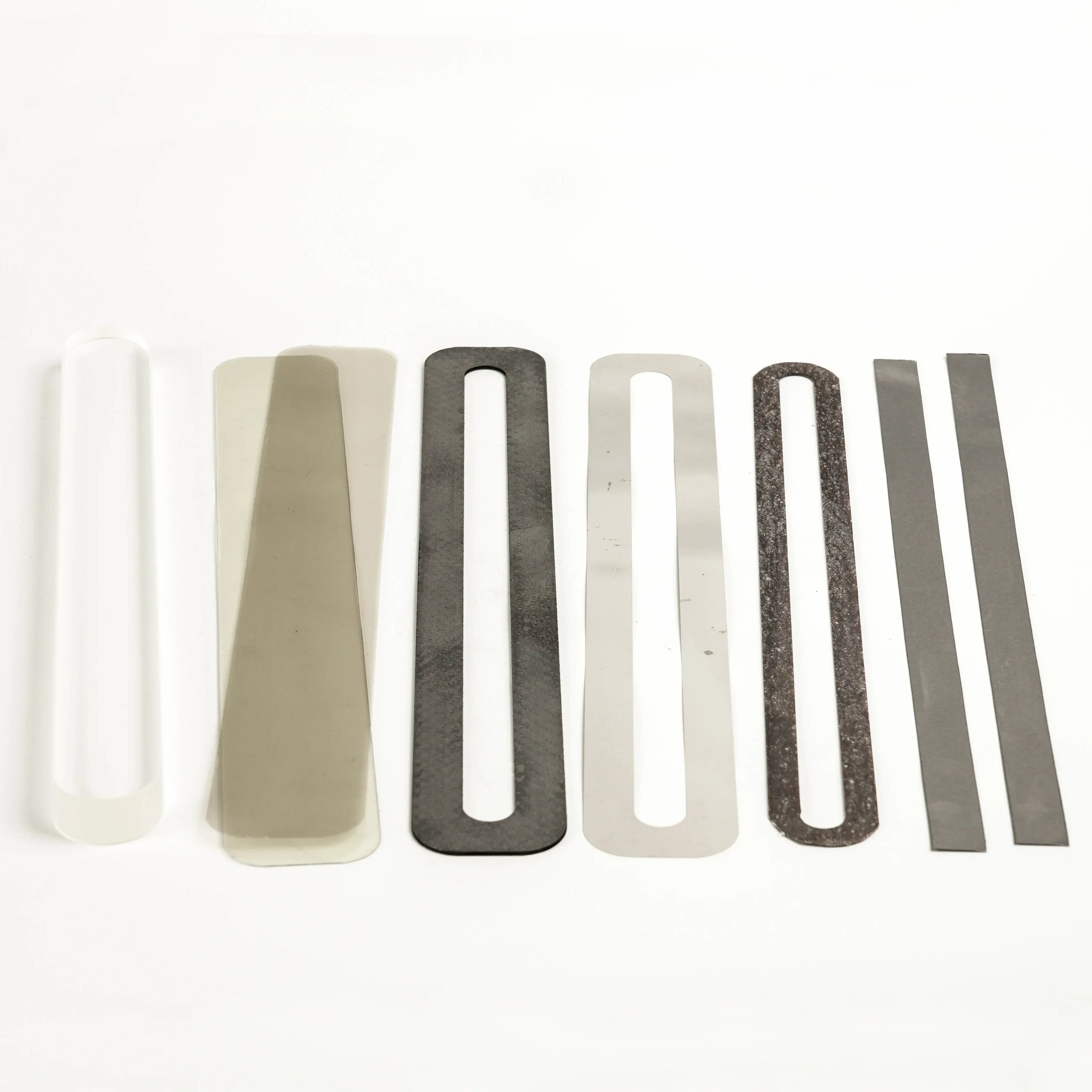

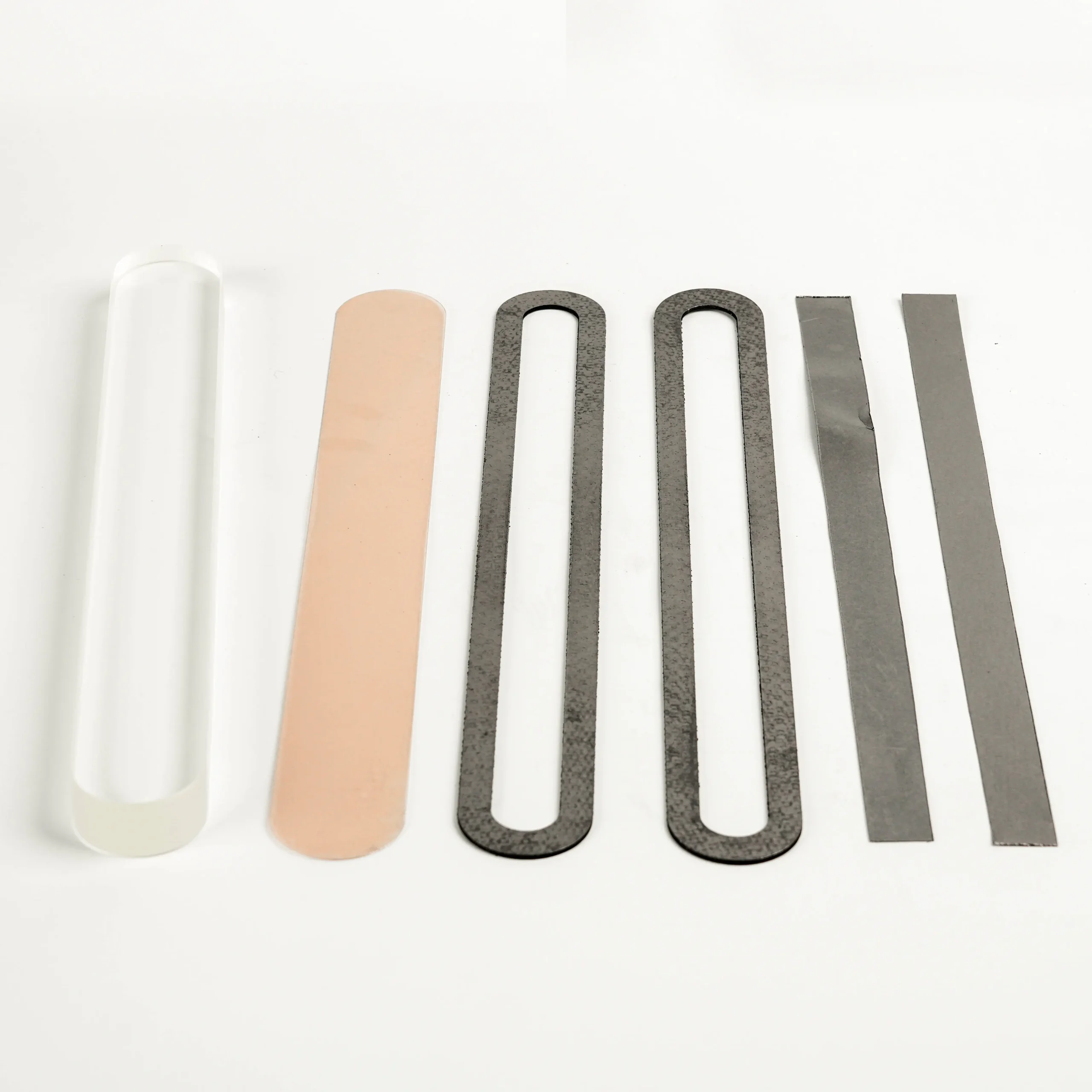

The kit combines transparent mica shields, graphite gaskets, alloy spacers, and protective strips to extend gauge glass service life, improve sealing performance, and reduce maintenance costs in boiler and process level measurement systems.
Non binding • Usually a response within 24 hours
Certified quality
Technical data
Mica Sealing Kit for Level Gauge Glass Overview
The Mica Sealing Kit is a complete sealing and protection solution used in transparent level gauges and reflex level gauges operating under severe service conditions.
In steam applications, hot condensate and dissolved chemicals can gradually attack the surface of gauge glass, reducing transparency and shortening service life. The mica shield acts as a protective barrier between the process medium and the glass surface, significantly improving operational reliability.
Combined with graphite gaskets, alloy support spacers, and graphite protection strips, the sealing kit provides excellent resistance to temperature, pressure, and chemical exposure while ensuring secure sealing performance.
All components are precision manufactured to match standard DIN 7081 gauge glass dimensions or customer-specific requirements.
Mica Sealing Kit for Level Gauge Glass— Technical Data
| Item | Material | Function |
|---|---|---|
| Mica Shield | Natural Transparent Mica | Protects Gauge Glass Surface |
| Graphite Gasket | Flexible Graphite | Primary Sealing Layer |
| Alloy Spacer | Stainless Steel / Metal Alloy | Load Distribution |
| Graphite Protection Strip | Flexible Graphite | Additional Protection |
| Application | Transparent Level Gauge | Steam & Chemical Service |
| Operating Temperature | Up to 400–800 °C depending on grade and atmosphere | — |
| Pressure Service | According to Gauge Design | — |
| Custom Sizes | Available | — |
| *Depends on system design and material selection. | ||

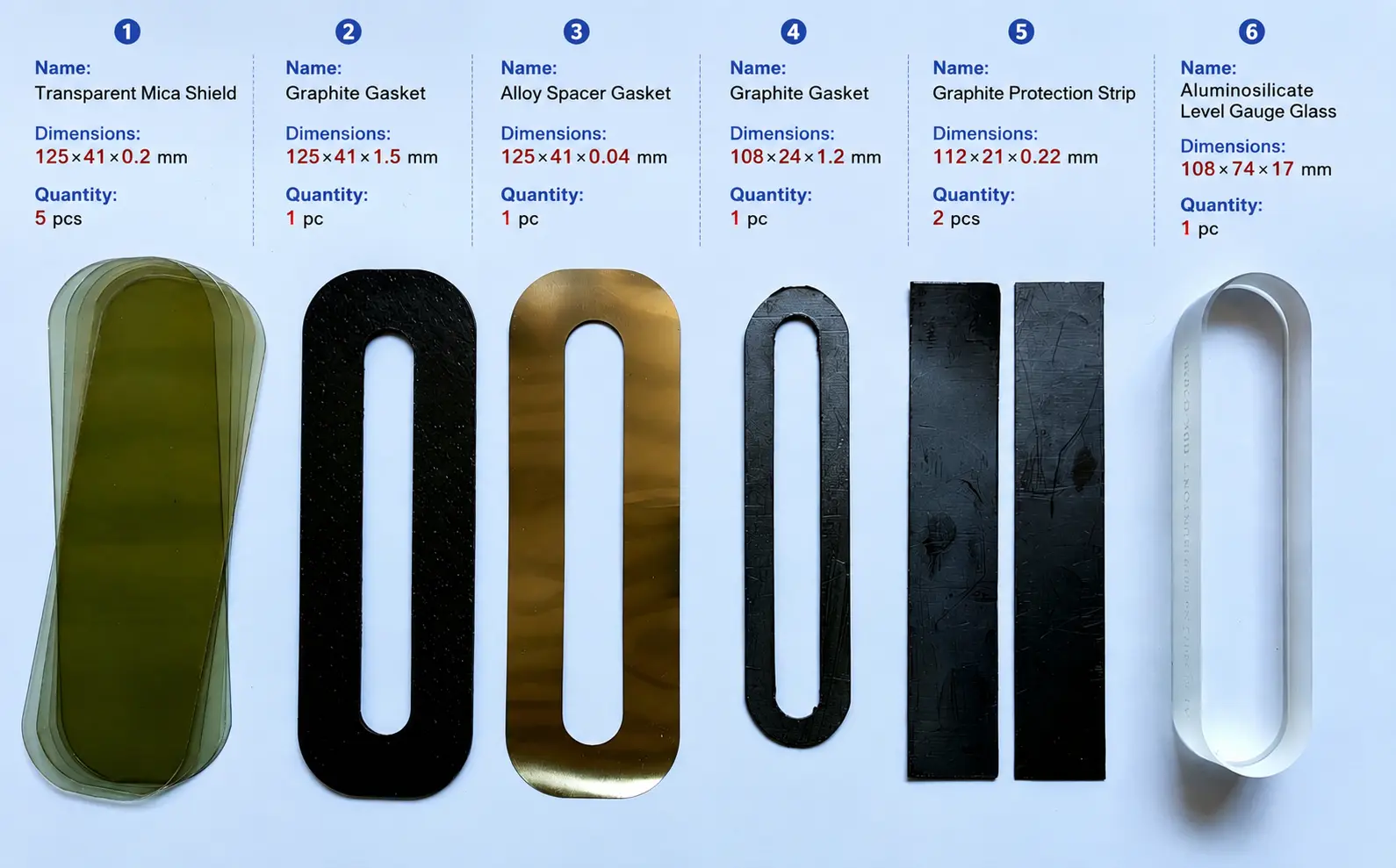

Reference drawing of mica sealing assembly
STANDARD KIT COMPONENTS
| Component | Typical Quantity |
|---|---|
| Transparent Mica Shield | 2–5 pcs |
| Graphite Gasket | 1–2 pcs |
| Alloy Spacer Gasket | 1 pc |
| Graphite Protection Strip | 1–2 pcs |
| Level Gauge Glass | Optional |
KEY FEATURES
Extended Gauge Glass Service Life
Protects gauge glass surfaces from steam erosion, alkaline attack, and chemical contamination.
Excellent High-Temperature Resistance
Suitable for steam boilers and high-temperature industrial process systems.
Enhanced Sealing Performance
Graphite gaskets and alloy spacers provide reliable sealing under pressure fluctuations.
Chemical Corrosion Protection
Mica shields isolate the glass surface from aggressive process media.
Complete Installation Kit
Includes all essential sealing and protection components required for level gauge assembly.
Custom Manufacturing Available
Customized dimensions and material combinations available according to customer drawings.
Custom Manufacturing Service
We provide tailor-made solutions according to drawings or technical requirements.
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
TYPICAL APPLICATIONS
- Steam Boilers
- Chemical Processing
- Petrochemical Industry
- Pipeline Sight Glass Assemblies
- Marine Boilers
- Food & Beverage Processing
- Industrial Observation Ports
FAQ
A: A mica sealing kit is used to protect gauge glass in level gauge assemblies operating under high temperature, steam, and chemically aggressive conditions.
A:Mica provides excellent transparency, heat resistance, and chemical stability. It acts as a protective barrier that prevents direct contact between process media and the gauge glass surface.
A:Mica shields are commonly recommended for steam service, boiler applications, alkaline solutions, and other environments that may damage exposed gauge glass.
A: A standard kit typically includes mica shields, graphite gaskets, alloy spacers, and graphite protection strips.
A:Yes. We manufacture custom dimensions to match DIN 7081 gauge glasses and customer-specific designs.
