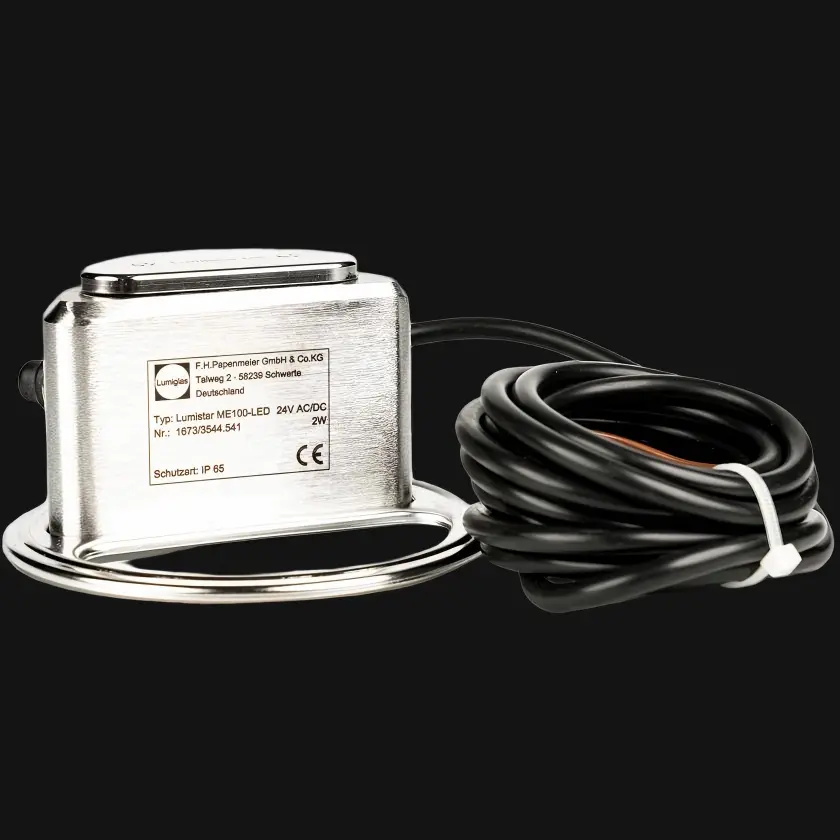

ME LED Sight Glass Luminaire
The ME LED Sight Glass Luminaire is a compact stainless steel LED light specially designed for DIN 11851 screwed sight glass fittings and Lumiglas MV assemblies. It provides reliable illumination for pipelines, tanks, mixers, and processing vessels in non-hazardous industrial environments while maintaining hygienic standards for food, beverage, and pharmaceutical applications.
Non binding • Usually a response within 24 hours
Technical data
ME LED Sight Glass Luminaire Overview
The ME LED Sight Glass Luminaire is a hygienic industrial lighting solution developed specifically for screwed sight glass fittings according to DIN 11851 and similar dairy-type connections. Unlike conventional flange-mounted luminaires, the ME LED is secured directly to the screwed sight glass fitting using a specially designed slotted cover nut, creating a compact combination of sight glass and illumination.
Manufactured from polished stainless steel, the luminaire offers excellent corrosion resistance and is particularly suitable for hygienic process industries. Its high-efficiency LED module provides bright, natural white illumination with minimal heat generation, allowing operators to clearly observe product flow, mixing, filling levels, and cleaning processes.
The ME LED is widely used in food processing, dairy production, breweries, pharmaceutical manufacturing, biotechnology, laboratory equipment, and sanitary process systems. With IP65 protection, a maintenance-free LED module, it delivers reliable long-term performance while reducing maintenance requirements.
ME LED Sight Glass Luminaire — Technical Data
| Specification | Details |
|---|---|
| Product Name | ME LED Sight Glass Luminaire |
| Light Source | High-Efficiency LED |
| Housing Material | Stainless Steel 1.4301 |
| Lens Material | Borosilicate Glass |
| Application | Non-Hazardous Areas |
| Protection Rating | IP65 |
| Operating Voltage | 12–24V DC (DN65/DN80), 24V AC/DC (DN100/DN125) |
| Rated Power | 1.5 W / 2.0 W |
| Luminous Flux | 110 lm / 170 lm |
| Color Temperature | 5000 K (Natural White) |
| Beam Angle | 26° or 33° |
| Ambient Temperature | Max. +40°C |
| Standard Cable Length | 3 m |
| Compatible Sizes | DN65, DN80, DN100, DN125 |
| Compatible Standard | DIN 11851 Screwed Sight Glass Fittings (MV Type) |

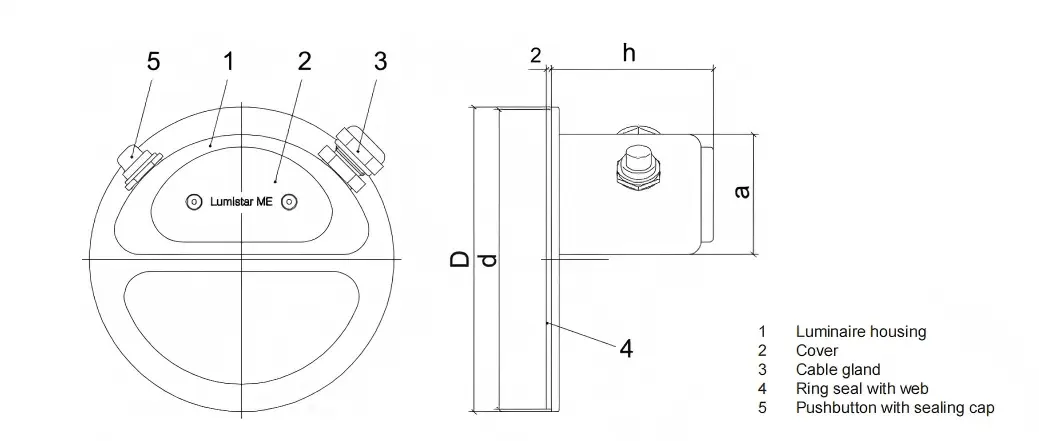

Dimensions and electrical data for Lumistar luminaire ME LED:
| Size | 1 | 2 | 3 | 4* | |
|---|---|---|---|---|---|
| Lumistar luminaire ME-LED | Type | ME 65-LED | ME 80-LED | ME 100-LED | ME 125-LED |
| suitable for screwed sight glass fitting acc. to DIN 11851 or similar | DN | 65 | 80 | 100 | 125 |
| Operating voltage | V | 12-24 DC | 12-24 DC | 24 AC/DC | 24 AC/DC |
| Power | W | 1.5 | 1.5 | 2.0 | 2.0 |
| Dimensions (mm) | D | 89 | 102 | 122 | 152 |
| d | 86 | 99 | 119 | 149 | |
| a | 35 | 35 | 48 | 48 | |
| h | 50 | 50 | 65 | 65 | |
| Nut opening according to DIN 11851 | d8 | 80 | 94 | 115 | 138 |
| Weight approx. (with connecting cable) | kg | 0.340 | 0.360 | 0.460 | 0.480 |
| Part no. (with pushbutton) | 3544.501.00 | 3544.521.00 | 3544.541.00 | 3544.561.00 | |
| Part no. (without pushbutton) | 3544.502.00 | 3544.522.00 | 3544.542.00 | 3544.562.00 |
KEY FEATURES
DIN 11851 Compatible
Designed for screwed sight glass fittings.
Stainless Steel Housing
Hygienic and corrosion resistant.
High-Efficiency LED
Bright, energy-saving illumination.
IP65 Protection
Dust-tight and splash-water resistant.
Natural White Light
5000 K for clear process observation.
Food Industry Ready
Ideal for sanitary processing applications.
TYPICAL APPLICATIONS
- Pressure Vessels
- Chemical Reactors
- Boilers & Steam Systems
- Pipeline Sight Glass Assemblies
- Pharmaceutical Equipment
- Food & Beverage Processing
- Industrial Observation Ports
FAQ
A:The ME LED is designed to illuminate the interior of pipelines, tanks, mixers, and vessels equipped with DIN 11851 screwed sight glass fittings, allowing operators to monitor industrial processes clearly.
A:The luminaire is designed for DIN 11851 screwed sight glass fittings and similar sanitary dairy-type connections in sizes DN65, DN80, DN100, and DN125.
A:Yes. Its stainless steel construction and hygienic design make it well suited for food, beverage, dairy, pharmaceutical, and biotechnology industries.
A: The ME LED is available in 12–24V DC for DN65 and DN80 models, and 24V AC/DC for DN100 and DN125 models.
A:Yes. Voltage, mounting accessories, cable length, beam angle, and housing options can be customized according to application requirements.
