Lumistar LED Sight Glass Light Overview
The Lumistar LED Sight Glass Light is a high-performance industrial illumination system designed for visual inspection of closed process equipment such as tanks, reactors, mixers, silos, and pipelines.
It is engineered to provide bright, uniform, and glare-free illumination through sight glass fittings, enabling operators to clearly observe flow conditions, mixing processes, liquid levels, and product quality in real time.
The luminaire uses advanced LED technology with low heat emission, making it suitable for temperature-sensitive applications in chemical, pharmaceutical, food & beverage, and biotechnology industries. Its robust industrial housing ensures reliable operation in demanding environments with high humidity, vibration, and continuous operation requirements.
Designed for mounting on standard circular sight glass fittings (such as DIN 28120 / DIN 28121 and similar systems), it can be used in combination sight glass + light configurations or separate lighting ports depending on installation requirements.
Lumistar LED Sight Glass Light— Technical Data
| Specification | Details |
|---|---|
| Product Name | Lumistar LED Sight Glass Light |
| Light Source | High Efficiency LED |
| Housing Material | Stainless Steel / Aluminum Alloy |
| Lens Material | Borosilicate Glass |
| Protection Class | IP65 / IP67 (depending on model) |
| Operating Voltage | 24V AC/DC or 110–230V AC |
| Power Consumption | 5W – 15W (depending on model) |
| Color Temperature | 5000K – 6500K (Daylight White) |
| Beam Angle | 18°, 25°, 30° (optional) |
| LED Lifetime | Up to 50,000 hours |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Bracket / Flange / Clamp Mount |
| Compatible Standards | DIN 28120 / DIN 28121 / DIN 11851 |

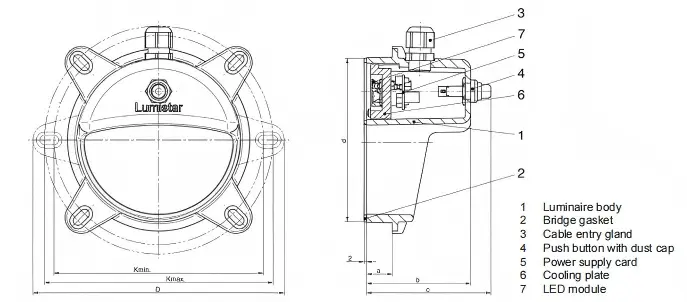

Dimensions and electrical data for Lumistar luminaire Lumistar LED Sight Glass Light:
| Lumistar-LED | 1 | 2 | 3* | 4* | 5* | 6* | 7* |
|---|---|---|---|---|---|---|---|
| Size (= viewing diameter) | 80 | 100 | 125 | 150 | 175 | 225 | 225 |
| Matches to fitting to DIN 28120 or similar DN | 50 | 80 | 100 | 125 | 150 | 200 | 200 |
| Operating voltage V | 24 | 24 | 24 | 24 | 24 | 24 | 230 |
| Power W | 5 | 6 | 6 | 6 / 10 | 6 / 12 | 15 / 15 1×7 / 2×4 LED | 15 / 15 1×7 / 2×4 LED |
| Bolt pitch circle Ø K min. | 104 | 126 | 155 | 180 | 208 | 258 | 258 |
| K max. | 118 | 140 | 169 | 194 | 222 | 282 | 282 |
| D | 135 | 157 | 186 | 211 | 243 | 303 | 303 |
| d | 77 | 97 | 122 | 147 | 172 | 222 | 222 |
| a | 13 | 17 | 19 | 22 | 27 | 32 | 32 |
| b | 65 | 75 | 77 | 80 | 85 | 95 | 95 |
| c | 80 | 90 | 92 | 95 | 100 | 110 | 110 |
| Fixing oval hole | 2 pcs. 14 x 7 | 2 pcs. 14 x 7 | 4 pcs. 14 x 7 | 4 pcs. 14 x 7 | 4 pcs. 16 x 9 | 4 pcs. 21 x 9 | 4 pcs. 21 x 9 |
| Bolts | M 6 x 16 | M 6 x 16 | M 6 x 16 | M 6 x 16 | M 8 x 16 | M 8 x 16 | M 8 x 16 |
| Weight appx. kg | 0.300 | 0.450 | 0.550 | 0.650 | 0.800 | 1.400 | 1.400 |
| Luminous flux lm | 450 | 600 | 600 | 600 / 950 | 600 / 1200 | 800 / 1400 | 800 / 1400 |
| Colour temp. k | 6500 | 6500 | 6500 | 6500 | 6500 | 5700 | 5700 |
| Part no. with push button | 3544.301.00 | 3544.321.00 | 3544.341.00 | 3544.367.00 / 3544.361.00 | 3544.387.00 / 3544.381.00 | 3544.407.00 / 3544.401.00 | 3544.410.00 / 3544.404.00 |
| Part no. without push button | 3544.302.00 | 3544.322.00 | 3544.342.00 | 3544.368.00 / 3544.362.00 | 3544.388.00 / 3544.382.00 | 3544.408.00 / 3544.402.00 | 3544.411.00 / 3544.405.00 |
*Can be combined with Lumiglas sight glass wiper SW I.
