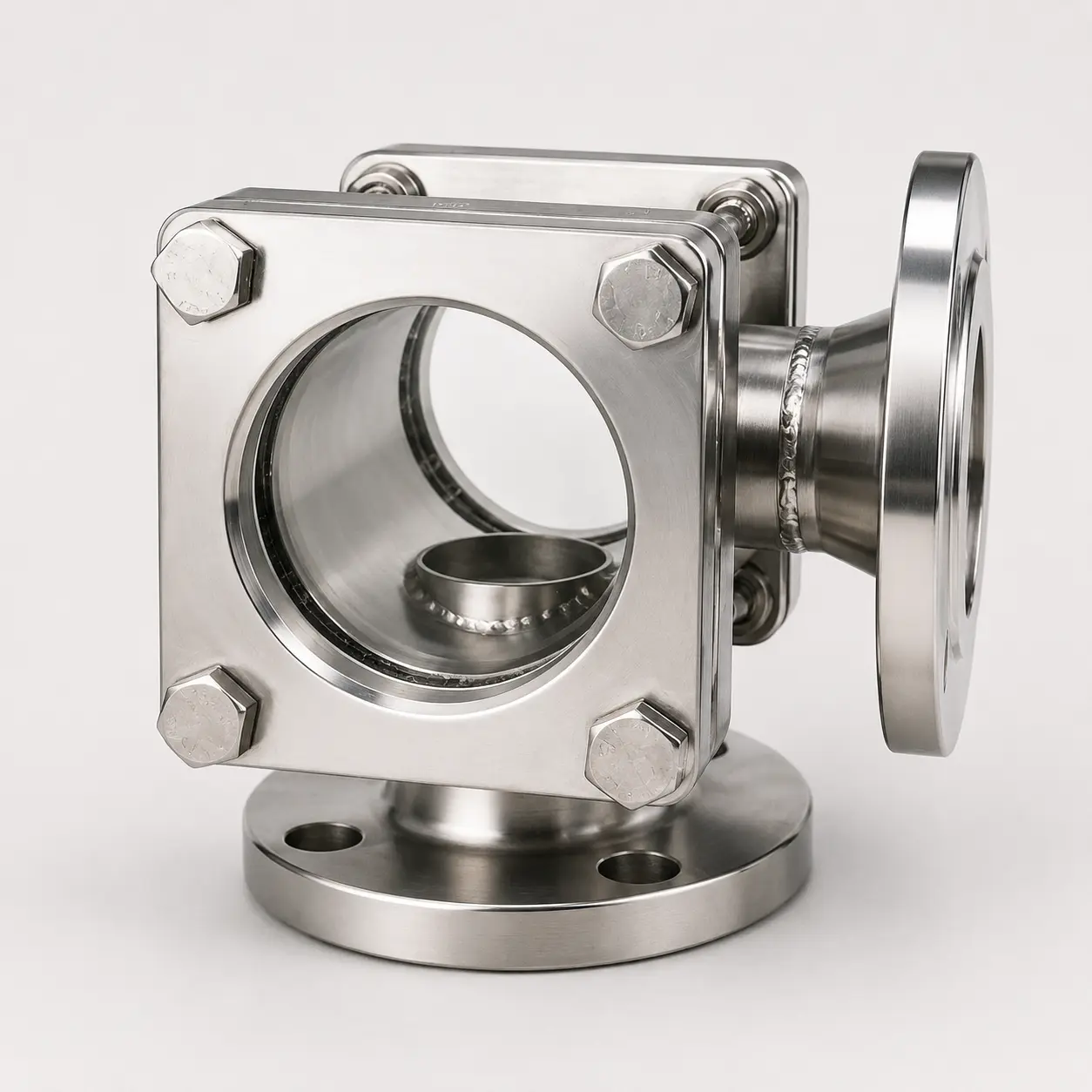

ANSI Right Angle Sight Glass
The ANSI Right Angle Sight Glass is designed for visual monitoring of fluid flow in pipelines where a 90-degree directional change is required. Combining flow redirection and process observation in a single compact unit, it provides excellent visibility, reliable sealing performance, and long-term durability for industrial process systems.
Non binding • Usually a response within 24 hours
Certified quality
Technical data
ANSI Right Angle Sight Glass for Flow Observation in 90° Pipeline Systems
The ANSI Right Angle Sight Glass is specifically designed for process pipelines that require a change in flow direction while maintaining continuous visual monitoring of the process media.
Unlike standard straight-through sight glasses, this design combines a 90-degree elbow connection with an integrated viewing window, allowing operators to inspect fluid flow, color changes, bubbles, contamination, sediment, and process conditions at critical turning points within the system.
Manufactured from high-quality stainless steel and equipped with precision-engineered transparent windows, the sight glass provides excellent corrosion resistance, mechanical strength, and long-term operational reliability.
The viewing section can be supplied with borosilicate glass, tempered safety glass, fused quartz glass, or sapphire glass depending on temperature, pressure, and chemical compatibility requirements.
Available with ANSI Class 150, 300, and customized pressure ratings, the ANSI Right Angle Sight Glass is widely used in chemical plants, pharmaceutical production lines, food processing facilities, petrochemical systems, and water treatment installations.
ANSI Right Angle Sight Glass— Technical Data
| Item | Description |
|---|---|
| Product Name | Flanged right-angle sight glasses |
| Use | For visual inspection of filling and flow in pipelines. Lumistar sight glasses enable reliable monitoring of the function and performance of individual devices as well entire plants |
| Operating Conditions | Operating Pressure:10 to 40 bar Operating temperature:150° C or 280° C |
| Installation position | any, Pay attention to the flow direction |
| Special design options | – with ANSI flanges – with other lengths – with different connection nominal diameters – with welds – with sight glass lights – with safety seal according to Lumistar type 885 or according to customer requirements |
| General Material Note | All weldable materials |
| Housing | Steel or stainless steel according to customer requirements |
| Glass plates | Borosilicate Glass DIN7080 Sodium lime glass DIN 8902 |
| Seals | Graphite ( or as desired ) |
ANSI Right Angle Sight Glass— Technical Advantages
| Feature | Benefit |
|---|---|
| 90° Flow Design | Saves installation space |
| Integrated Viewing Window | Direct process observation |
| Stainless Steel Housing | Corrosion resistance |
| ANSI Flanged Connections | Easy installation |
| Multiple Glass Options | Adaptable to process conditions |
| Pressure-Rated Construction | Industrial compatibility |
| Compact Structure | Simplified piping design |
| Long Service Life | Reduced maintenance costs |

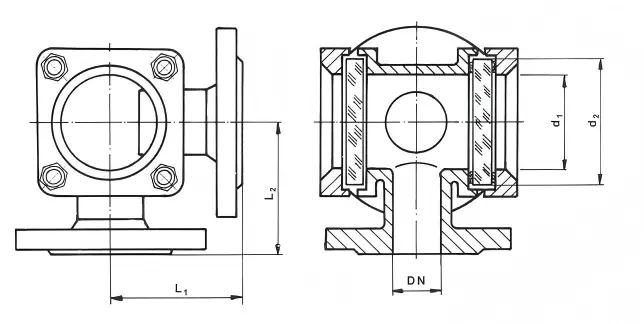

ANSI Right Angle Sight Glass— Drawing
| DN | L₁=L₂ | d₁ | d₂ |
|---|---|---|---|
| 15 | 90 | 48 | 63 |
| 20 | 95 | 48 | 63 |
| 25 | 100 | 65 | 80 |
| 32 | 105 | 80 | 100 |
| 40 | 115 | 80 | 100 |
| 50 | 125 | 100 | 125 |
| 65 | 145 | 100 | 125 |
| 80 | 155 | 100 | 125 |
| 100 | 175 | 125 | 150 |
| Overall lengths according to DIN 3202, series F32 (PN10-40) DN125-DN250 available on request. | |||
KEY FEATURES
Integrated 90° Flow Direction Design
Combines a pipeline elbow and sight glass into one compact assembly.
Real-Time Process Observation
Suitable for pressure-loaded industrial system
Stainless Steel Construction
Available in SS304, SS316L, Duplex Stainless Steel, and customized alloys.
Large Viewing Window
Ensures clear observation of flow conditions and product quality.
Pressure-Rated Design
Suitable for industrial process systems operating under pressure.
Corrosion Resistant Performance
Designed for aggressive chemicals, solvents, acids, alkalis, and industrial fluids.
Custom Manufacturing Service
We provide tailor-made solutions according to drawings or technical requirements.
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
TYPICAL APPLICATIONS
- Pressure Vessels
- Chemical Reactors
- Boilers & Steam Systems
- Pipeline Sight Glass Assemblies
- Pharmaceutical Equipment
- Food & Beverage Processing
- Industrial Observation Ports
FAQ
A: The center hole is commonly used for mounting wipers, sensors, probes, or special accessories while maintaining visibility inside the vessel.
A:A right angle sight glass combines flow redirection and process observation in a single component, reducing installation space and improving process visibility.
A: Yes. ANSI Right Angle Sight Glasses are available for various pressure ratings depending on operating requirements.
A: Yes. Material selection can be customized for acids, alkalis, solvents, seawater, and other aggressive media.
A: Chemical processing, pharmaceuticals, food manufacturing, petrochemical production, water treatment, and industrial utility systems.
RELATED PRODUCTS
Need Custom ANSI Right Angle Sight Glass Solutuions?
Send us your drawings or technical requirements for fast quotation and engineering support.
