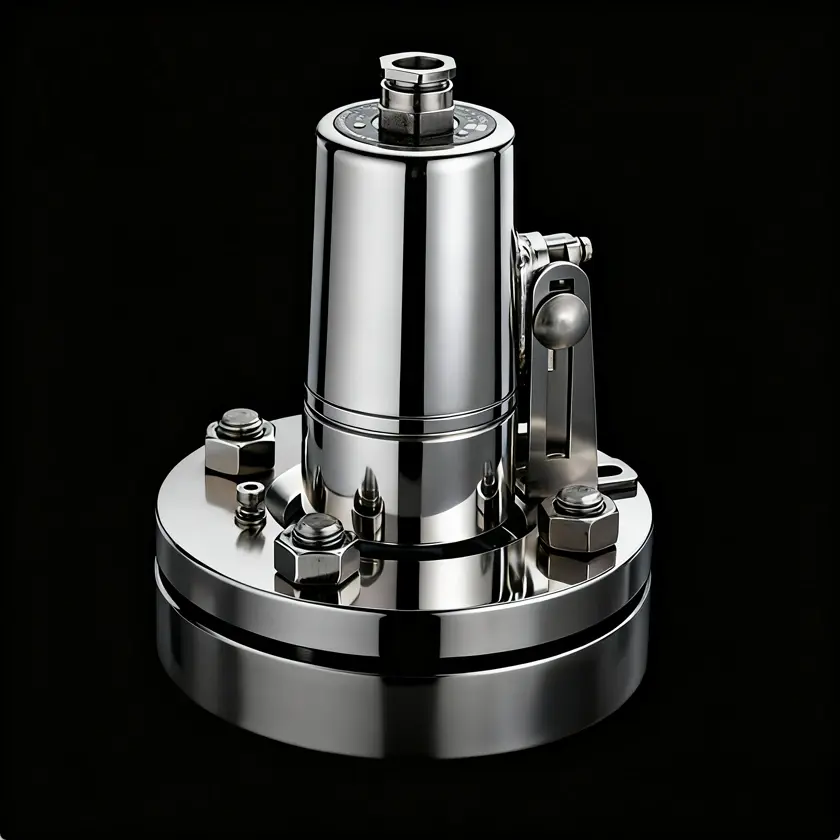

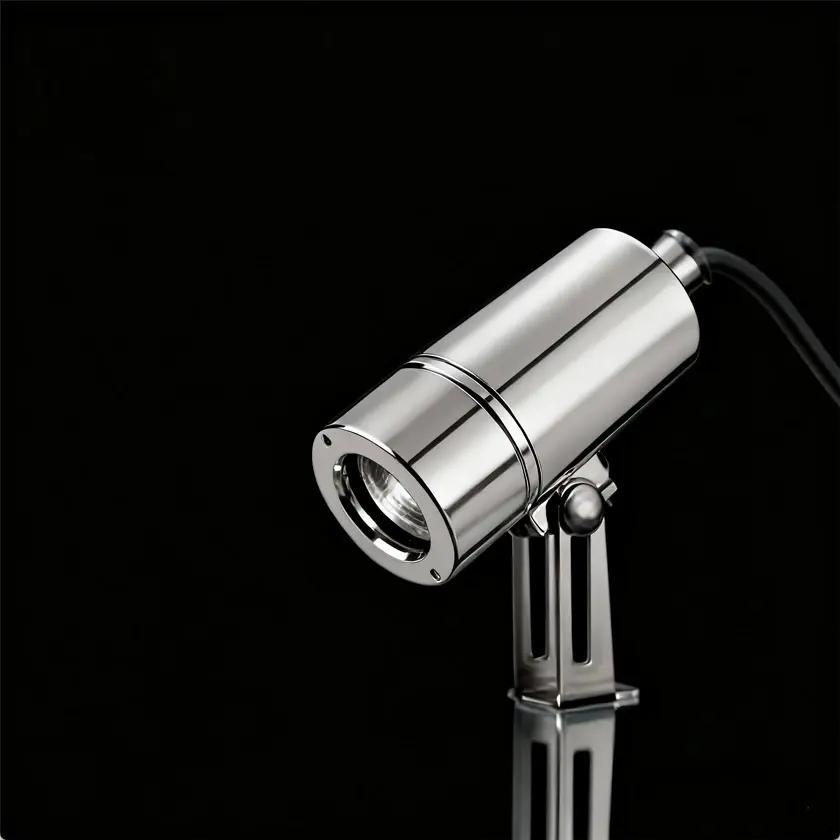

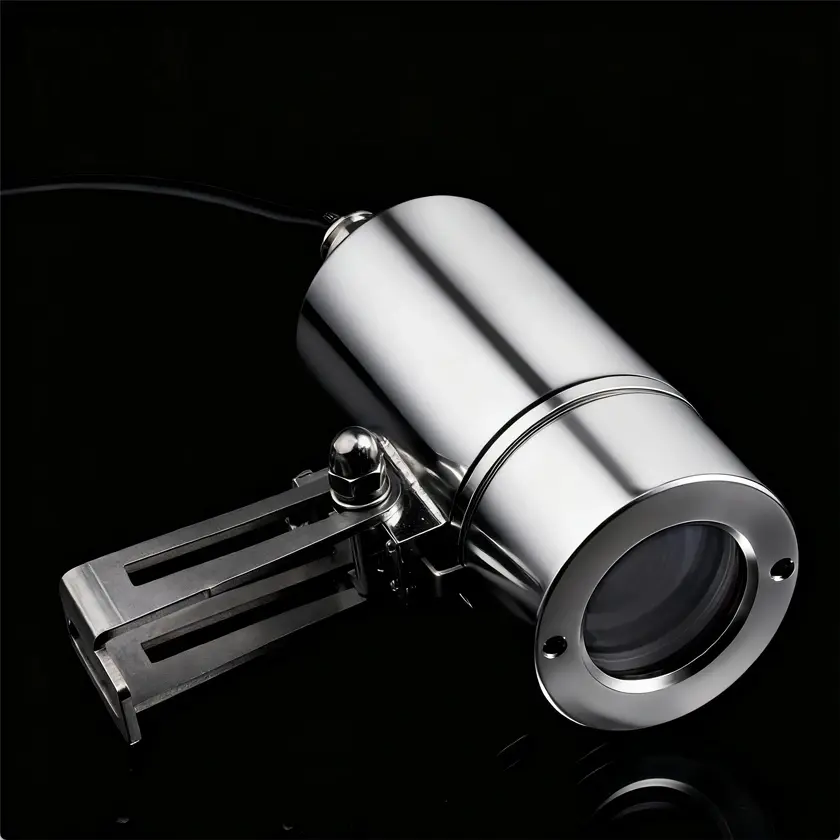

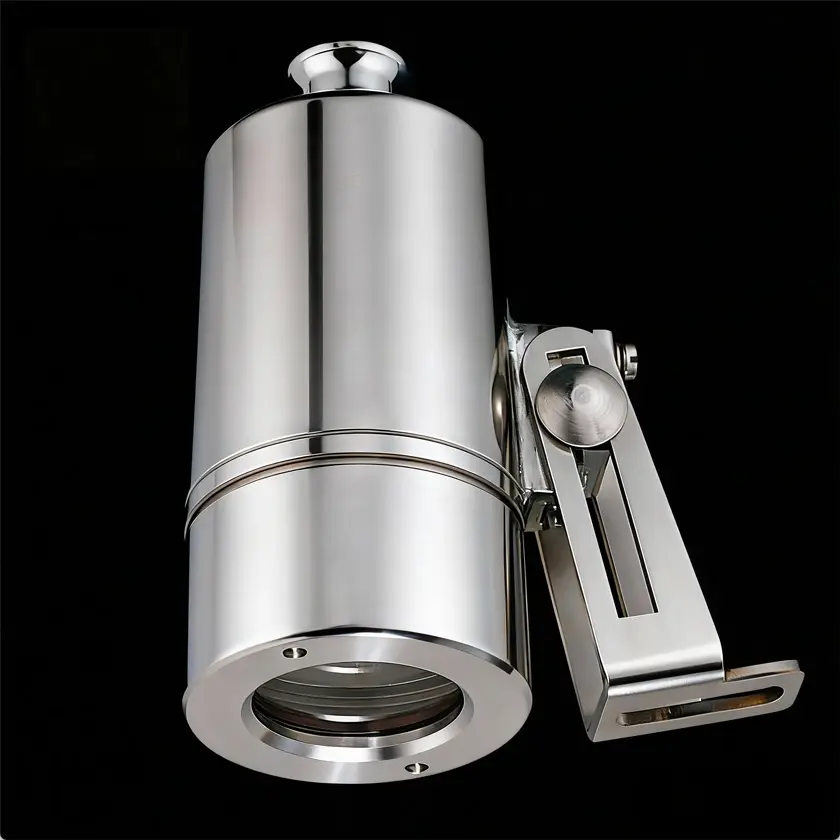

demo Lumistar luminaire ESL25 LED-Ex Explosion-Proof Sight Glass Light
Thermally pre-stressed round borosilicate glass plates according to DIN 7080
Non binding • Usually a response within 24 hours
Technical data
| Standard dimensions according to DIN 7080 | Special dimensions in reference to DIN 7080 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimension | Name | Permissible pressure in bar | MAXOS® product code | LUMIGLAS® product code | Dimension | Name | Permissible pressure in bar | MAXOS® product code | LUMIGLAS® product code |
| Ø 45 x 10 mm | din7080-40 | 40 | 2071554 | LMX2071554 | Ø 24 x 10 mm | din7080-150 | 150 | 2071640 | LMX2071640 |
| Ø 45 x 12 mm | din7080-50 | 50 | 2071556 | LMX2071556 | Ø 30 x 12 mm | din7080-150 | 150 | 2071622 | LMX2071622 |
| Ø 50 x 10 mm | din7080-25 | 25 | 2071558 | LMX2071558 | Ø 30 x 15 mm | din7080-200 | 200 | 2071533 | LMX2071533 |
| Ø 50 x 12 mm | din7080-40 | 40 | 2071561 | LMX2071561 | Ø 31,6 x 12,75 mm | din7080-150 | 150 | 2071598 | LMX2071598 |
| Ø 60 x 10 mm | din7080-16 | 16 | 2071560 | LMX2071560 | Ø 33 x 14 mm | din7080-150 | 150 | 2071557 | LMX2071557 |
| Ø 60 x 12 mm | din7080-25 | 25 | 2071562 | LMX2071562 | Ø 34 x 17 mm | din7080-200 | 200 | 2071552 | LMX2071552 |
| Ø 60 x 15 mm | din7080-40 | 40 | 2071563 | LMX2071563 | Ø 40 x 10 mm | din7080-40 | 40 | 2071624 | LMX2071624 |
| Ø 63 x 10 mm | din7080-16 | 16 | 2071566 | LMX2071566 | Ø 40 x 12 mm | din7080-50 | 50 | 2071555 | LMX2071555 |
| Ø 63 x 12 mm | din7080-25 | 25 | 2071567 | LMX2071567 | Ø 44 x 10 mm | din7080-40 | 40 | 2071603 | LMX2071603 |
| Ø 63 x 15 mm | din7080-40 | 40 | 2071569 | LMX2071569 | Ø 44 x 12 mm | din7080-50 | 50 | 2071564 | LMX2071564 |
| Ø 80 x 12 mm | din7080-16 | 16 | 2071573 | LMX2071573 | Ø 55 x 6,5 mm | din7080-6 | 6 | 2071626 | LMX2071626 |
| Ø 80 x 15 mm | din7080-25 | 25 | 2071575 | LMX2071575 | Ø 55 x 10 mm | din7080-25 | 25 | 2071559 | LMX2071559 |
| Ø 80 x 20 mm | din7080-40 | 40 | 2071576 | LMX2071576 | Ø 60 x 20 mm | din7080-95 | 95 | 2071604 | LMX2071604 |
| Ø 100 x 15 mm | din7080-16 | 16 | 2071578 | LMX2071578 | Ø 63 x 8 mm | din7080-8 | 8 | 2071565 | LMX2071565 |
| Ø 100 x 20 mm | din7080-25 | 25 | 2071579 | LMX2071579 | Ø 65 x 10 mm | din7080-12 | 12 | 2071629 | LMX2071629 |
| Ø 100 x 25 mm | din7080-40 | 40 | 2071580 | LMX2071580 | Ø 65 x 15 mm | din7080-40 | 40 | 2071606 | LMX2071606 |
| Ø 125 x 15 mm | din7080-10 | 10 | 2071581 | LMX2071581 | Ø 70 x 12 mm | din7080-16 | 16 | 2071568 | LMX2071568 |
| Ø 125 x 20 mm | din7080-16 | 16 | 2071582 | LMX2071582 | Ø 70 x 15 mm | din7080-25 | 25 | 2071570 | LMX2071570 |
| Ø 125 x 25 mm | din7080-25 | 25 | 2071583 | LMX2071583 | Ø 75 x 12 mm | din7080-16 | 16 | 2071607 | LMX2071607 |
| Ø 135 x 25 mm | din7080-25 | 25 | 2071644 | LMX2071644 | Ø 80 x 10 mm | din7080-10 | 10 | 2071571 | LMX2071571 |
| Ø 150 x 20 mm | din7080-10 | 10 | 2071586 | LMX2071586 | Ø 86 x 12 mm | din7080-10 | 10 | 2071610 | LMX2071610 |
| Ø 150 x 25 mm | din7080-16 | 16 | 2071587 | LMX2071587 | Ø 90 x 10 mm | din7080-8 | 8 | 2071572 | LMX2071572 |
| Ø 150 x 30 mm | din7080-25 | 25 | 2071588 | LMX2071588 | Ø 92 x 10 mm | din7080-8 | 8 | 2071625 | LMX2071625 |
KEY FEATURES
Thermal Stability
High resistance to thermal shock for extreme temperature environments
High Mechanical Strength
Suitable for pressure-loaded industrial systems
Chemical Resistance
Stable performance in corrosive chemical environments
Excellent Transparency
Clear visibility for process monitoring
Precision Manufacturing
Accurate dimensions and polished sealing surfaces
Custom Design Support
OEM / ODM customization available
High-pressure versions can be customized according to operating conditions.
- Pressure capability: up to 200 Bar
- Custom thickness available
- Engineering support provided
Custom Manufacturing Service
We provide tailor-made solutions according to drawings or technical requirements.
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
TYPICAL APPLICATIONS
- Custom diameter
- Custom thickness
- Special pressure design
- Edge polishing
- Optical finishing
- OEM / ODM support
- Custom packaging
FAQ
A: Borosilicate glass 3.3.
A: Yes, based on drawings or specifications.
A: EN 10204 3.1, ISO 9001, PED support, BV inspection.
A: Yes, up to 200 Bar depending on design.
A: Chemical, pharmaceutical, food, marine, industrial systems.
Need Custom demo Lumistar luminaire ESL25 LED-Ex Explosion-Proof Sight Glass Light Solutuions?
Send us your drawings or technical requirements for fast quotation and engineering support.
